Logan Rear Mount, Counter Shaft PTOs for Eaton Cummins Endurant XD Transmissions

Logan Delivers Higher Torque Margin, Controlled Engagement, and Improved PTO Durability for Endurant XD Rear-Mount Counter Shaft PTO Applications

In today’s Class 6–8 vocational truck market, fleet owners and engineers are placing renewed emphasis on PTO durability during both mobile and stationary operation. In Endurant XD rear countershaft PTO applications, Logan multi-disc PTO clutches with SoftStart™ technology allow auxiliary equipment to be engaged at very low vehicle speeds. This creates a meaningful advantage in applications such as side dumps and hydraulic tag axles, where low-speed mobile PTO operation can improve vehicle functionality and reduce dependence on stationary operation.

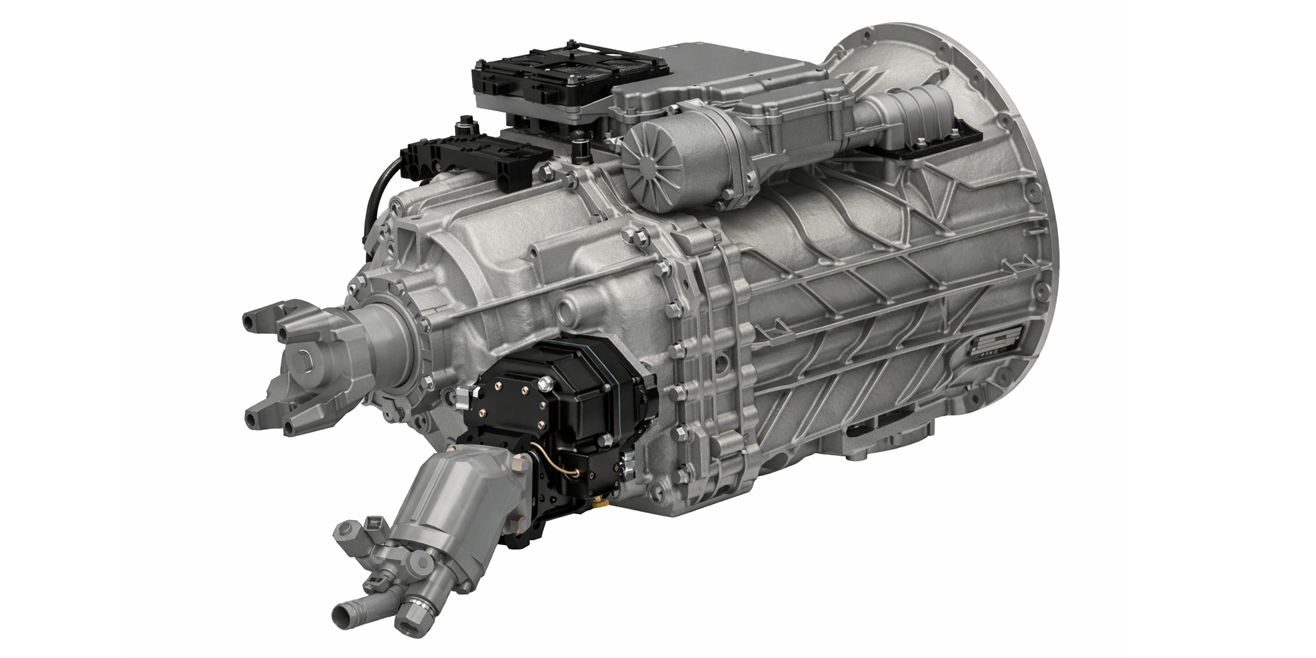

Because the Endurant XD rear PTO mounting location is countershaft-driven rather than flywheel-coupled, PTO operation depends on transmission clutch engagement. In this arrangement, engagement behavior, reflected inertia, and torque reserve become critical factors in long-term PTO durability.

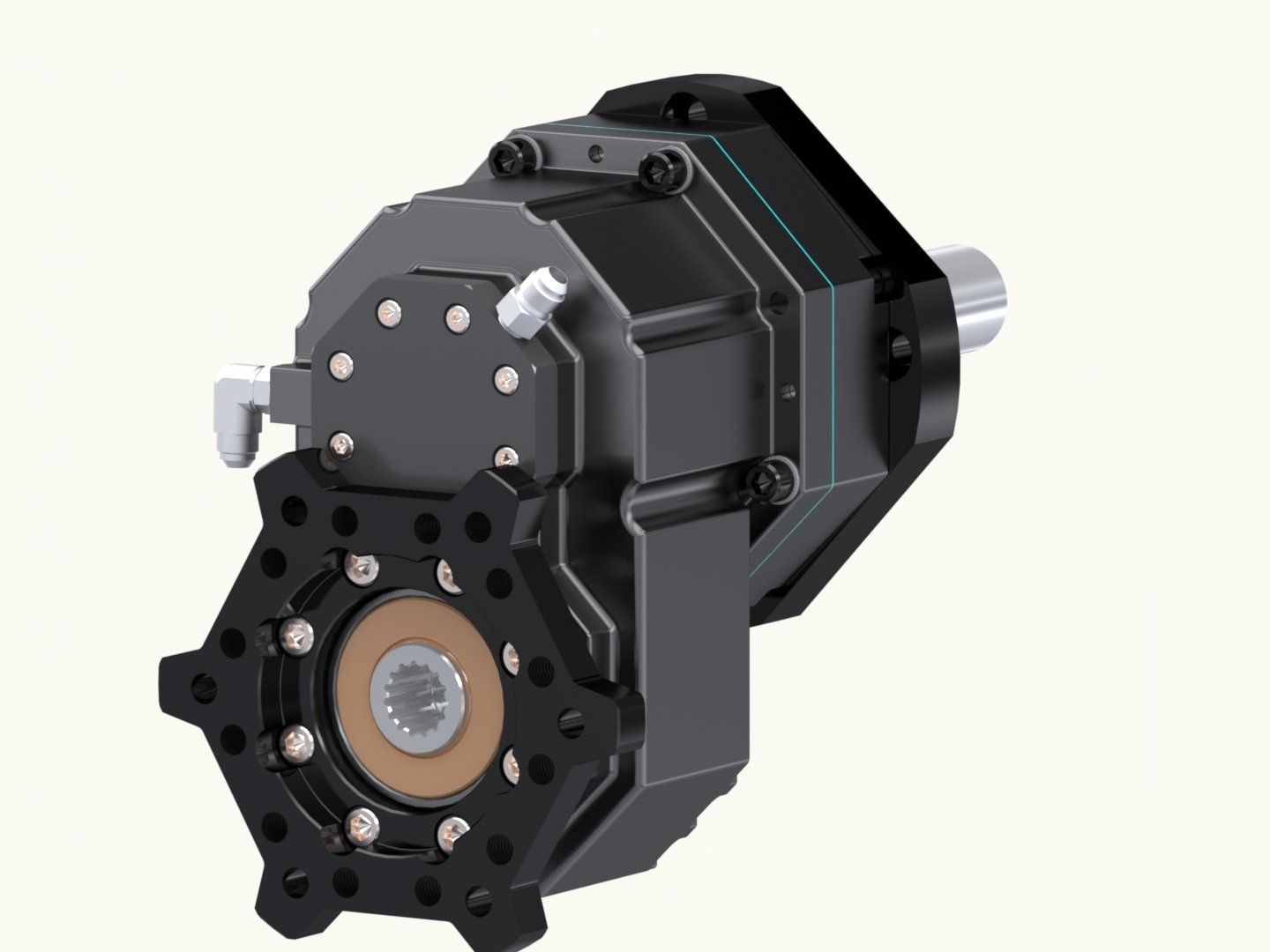

Eaton Cummins documentation identifies several rear countershaft PTO options for the Endurant XD platform from multiple manufacturers, including the Chelsea 524, Bezares 95X series, Muncie P81/P84 series, and Logan’s 430 Series rear PTO clutch offerings.

The Importance of Torque Margin in Endurant Rear Counter Shaft PTOs

In live PTO service, durability is often governed less by steady-state load and more by transient events, e.e. torque spikes or high-inertia starts, cyclic loading, and torsional vibration. Under these conditions, published torque capacity functions as a practical proxy for operating margin under non-ideal conditions such as changing loads, variable duty cycles, operator-controlled engagement, and cold-start conditions.

Published rear countershaft PTO ratings show that the Logan 430 Series rear counter shaft PTO provides 430 lb-ft of continuous torque capacity and 490 lb-ft intermittent capacity at commonly applied ratios, creating a significant and measurable factor of safety between 43% and 69% versus several rear PTO families commonly specified for Endurant XD transmissions.

Published torque comparisons show a clear torque advantage for the Logan 430 Series in Endurant XD rear counter shaft PTO applications:

Disc Pack Strength – SoftStart™ Control

Common rear countershaft PTO offerings for Endurant XD are fundamentally gear-driven PTO gearboxes that are mechanically engaged (typically through a mechanical shift mechanism and/or pneumatic shift actuation). This conventional method of mechanical engagement can provide adequate torque transfer in steady operation; however, it does not function as a modulating clutch system whose primary role is to manage engagement energy at the PTO itself.

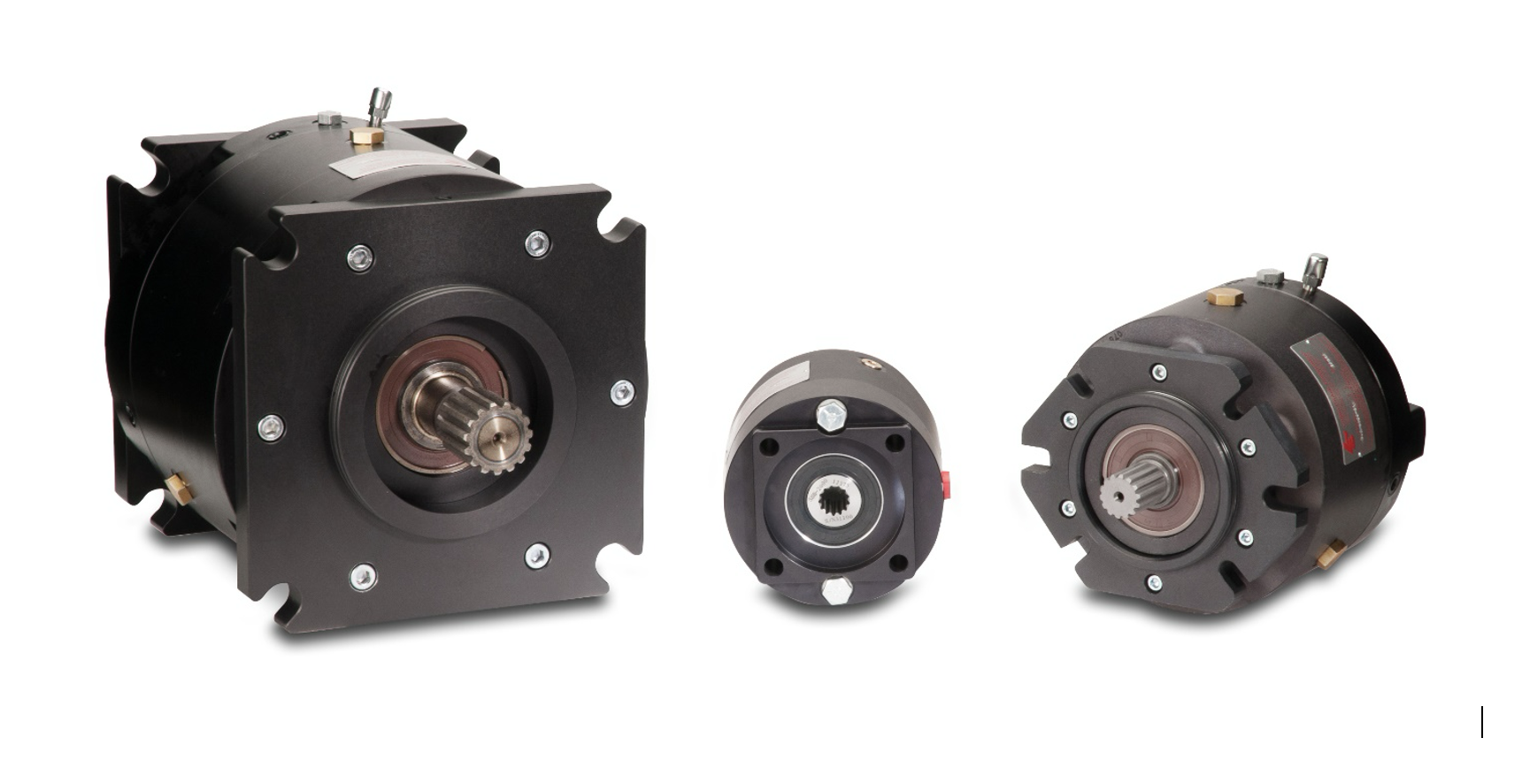

Logan’s approach is fundamentally different: a multi-disc clutch-based torque transfer strategy with controlled engagement (SoftStart™) designed for smooth engagement and quick release at low vehicle speeds.

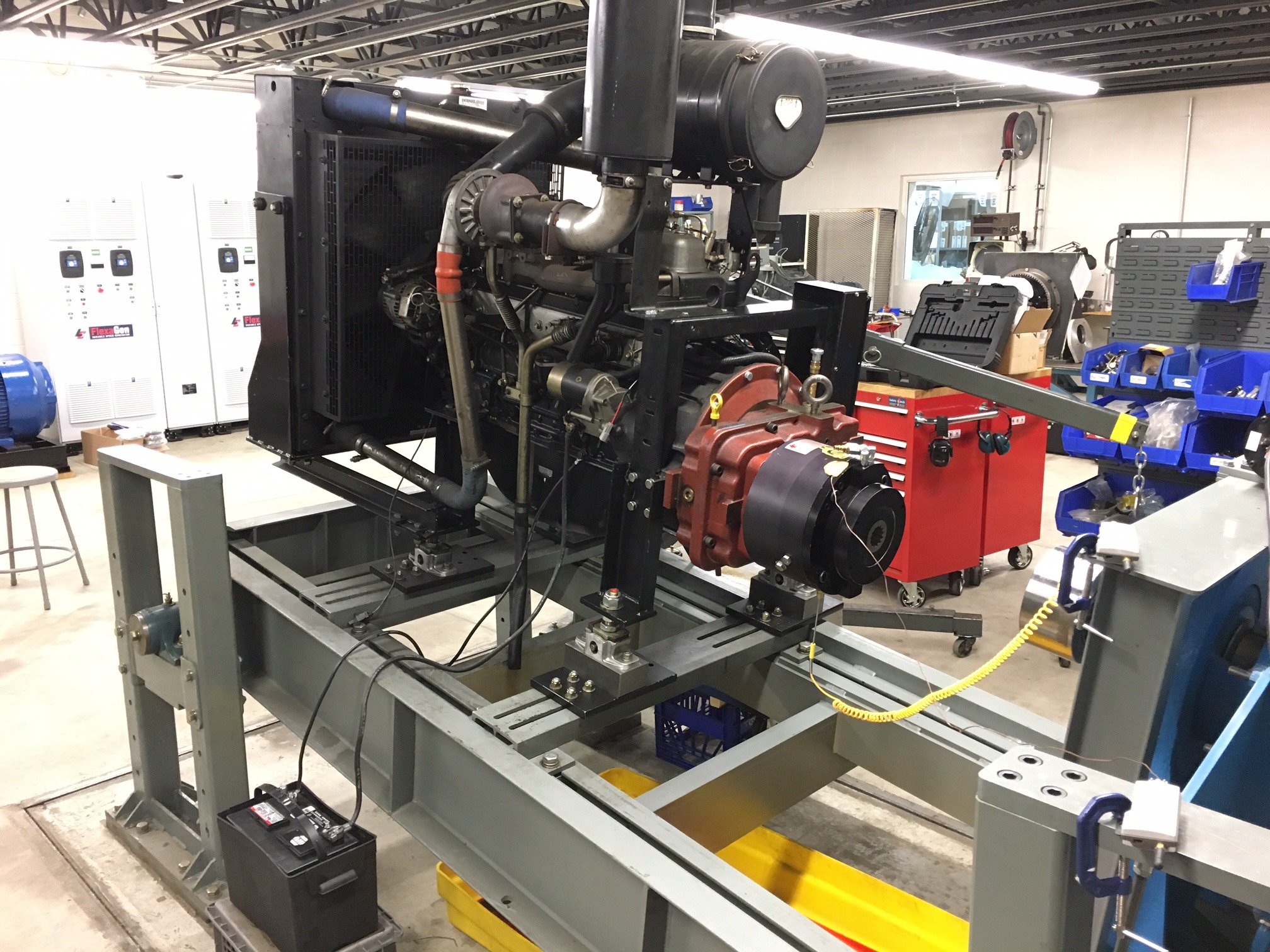

Heavy-Duty Disc Pack for Continuous PTO Operation

PTO clutch durability is closely tied to disc pack strength and how engagement energy is introduced into the clutch. Logan’s PTO clutch design emphasizes disc pack elements intended to support high-energy engagement:

• Sintered bronze friction material selected for stable engagement behavior under repeated energy events.

• Separator plate and release springs that support uniform engagement pressure and consistent release. Logan release springs minimize residual drag and provide a free-running clearance when disengaged.

SoftStart™ Technology: Smoother Engagement, Longer Life

Abrupt engagement increases instantaneous energy absorption and accelerates wear—particularly in high-inertia applications. Logan’s SoftStart™ clutch engagement is intended to control engagement rate and reduce torque spikes and clutch shock during startup. By moderating pressure during engagement, SoftStart™ limits peak energy input to the clutch pack while still delivering positive, repeatable engagement.

For fleets, the benefit is twofold:

• Reduced wear initiation during starts, especially when engagement occurs under load.

• Lower shock loading transmitted into shafts, couplings, and driven equipment.

Reducing Backlash and Vibration for Long-Term PTO Reliability

In vocational service, micromotion at input and output shaft interfaces can accelerate wear and increase backlash over time. Logan literature describes high-alloy shafts which support maximum shaft diameters for increased strength. A patent-pending keyless, spline-less design delivers a backlash-free, vibration-resistant connection, intended to stabilize torque transfer and reduce sensitivity to torsional activity.

Real-World Benefits for Endurant XD Rear Counter Shaft PTO Users

Higher torque capacity allows the PTO to operate at a lower stress ratio during normal service, which improves clutch durability during cold starts, sudden load changes, engagement under load, and cyclic torque reversals.

In practice, the Logan design approach supports:

• Higher factor of safety during peak events (up to 69% more torque when compared to leading brands).

• Smooth, consistent engagement during heavy load conditions and duty cycles.

• Reduced driveline shock and vibration sensitivity in torsionally active systems.

Use Case: Higher Safety Factor During High-Inertia Starts

Consider a mobile hydraulic application requiring approximately 60 HP at 1,000 PTO rpm. The corresponding torque is T = HP × 5252 / rpm ≈ 60 × 5252 / 1000 ≈ 315 lb-ft. A rear countershaft PTO rated at 300 lb-ft has little reserve in this situation, before accounting for cold oil start conditions or transient spikes.

With a 430 lb-ft continuous rating, the Logan 430 Series provides a higher operating margin.

Expressed as a factor of safety against the typical 315 lb-ft rating:

• 300 lb-ft rating: Factor of Safety 300/315 = 0.95 (near or above the published limit).

• Logan 430 lb-ft continuous: Factor of Safety 430/315 = 1.37 (+36.5% higher torque capacity).

That additional margin becomes especially valuable when engagement occurs under load during mobile operation, or when transient events elevate required torque above steady-state values.

Industries and Duty Cycles Where Logan PTOs Excel

• Refuse & recycling — high-cycle PTO

• Snow & ice — cold starts, transients

• Roll-off / hooklift — high inertia loads

• Vacuum / jetting — large load swings

• Utility bucket/digger — variable hydraulics

• Tow & recovery — frequent short cycles

• Municipal vehicles — stop-and-go PTO

• Side Dump Semi-Trailers

Logan 430 Series Rear Counter Shaft PTO Ratings

Logan publishes torque and power at 1,000 rpm and 500 rpm to support low-speed operation planning and duty-cycle matching.

Torque Comparison: Logan 430 vs. Leading Rear-Mount PTOs

The table below summarizes published rear countershaft PTO torque ratings for commonly specified Endurant XD Counter shaft mount PTO families, alongside Logan 430 Series published values. Percent advantage is calculated as (Logan − Other) / Other. Note: Muncie values shown are identified as intermittent in Muncie literature.

Defining the Right Rear Counter-Shaft PTO for Endurant HD Applications

Defining the Right Rear Counter-Shaft PTO for Endurant XD Applications

For Endurant XD rear counter-shaft applications, effective PTO specification should emphasize:

• Controlled engagement to manage energy and reduce shock during starts.

• Sufficient continuous-duty torque margin to avoid operating near published limits.

• A disc pack designed for repeated high-energy engagement events (not just intermittent, lightly loaded cycles).

• Stable, vibration-resistant interfaces to reduce backlash growth and long-term maintenance risk.

Frequently Asked Questions

Why does torque margin matter if my application has a known steady load?
Because rear countershaft PTO duty includes engagement events and transients that can exceed steady-state demand, torque margin improves survivability and reduces long-term stress.

What is the main difference between Logan’s approach and mechanically engaged rear PTO gearboxes?
Mechanically engaged rear countershaft PTOs provide on/off coupling via mechanical or pneumatic shift. Logan’s clutch-based approach adds a disc pack and SoftStart™ engagement control to shape the engagement event and reduce shock loading.

How does SoftStart™ help in high inertia applications?
By moderating engagement rate to reduce torque spikes and peak energy input to the clutch pack during startup.

How should I compare ratings across brands?
Confirm the rating basis (continuous vs. intermittent) and the operating duty cycle. The comparison table reflects the rating basis shown in the cited documents.

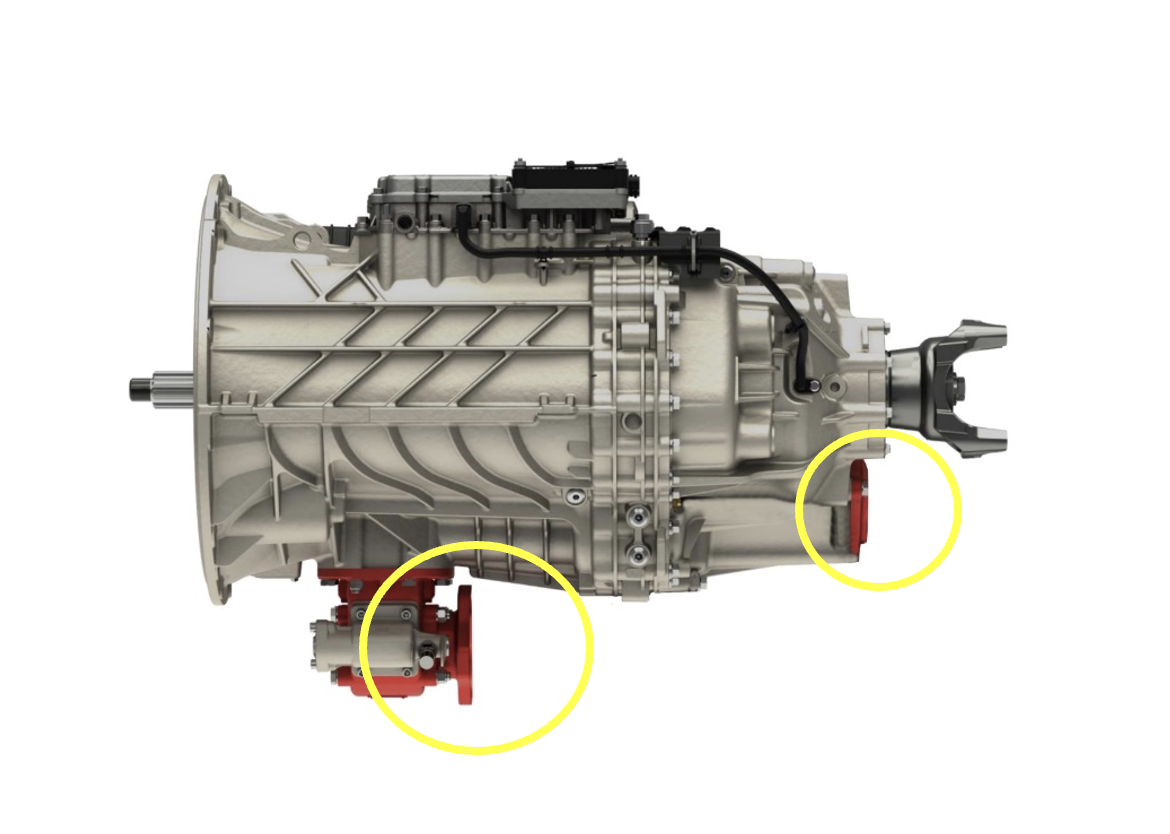

Does Logan support Endurant models beyond XD?

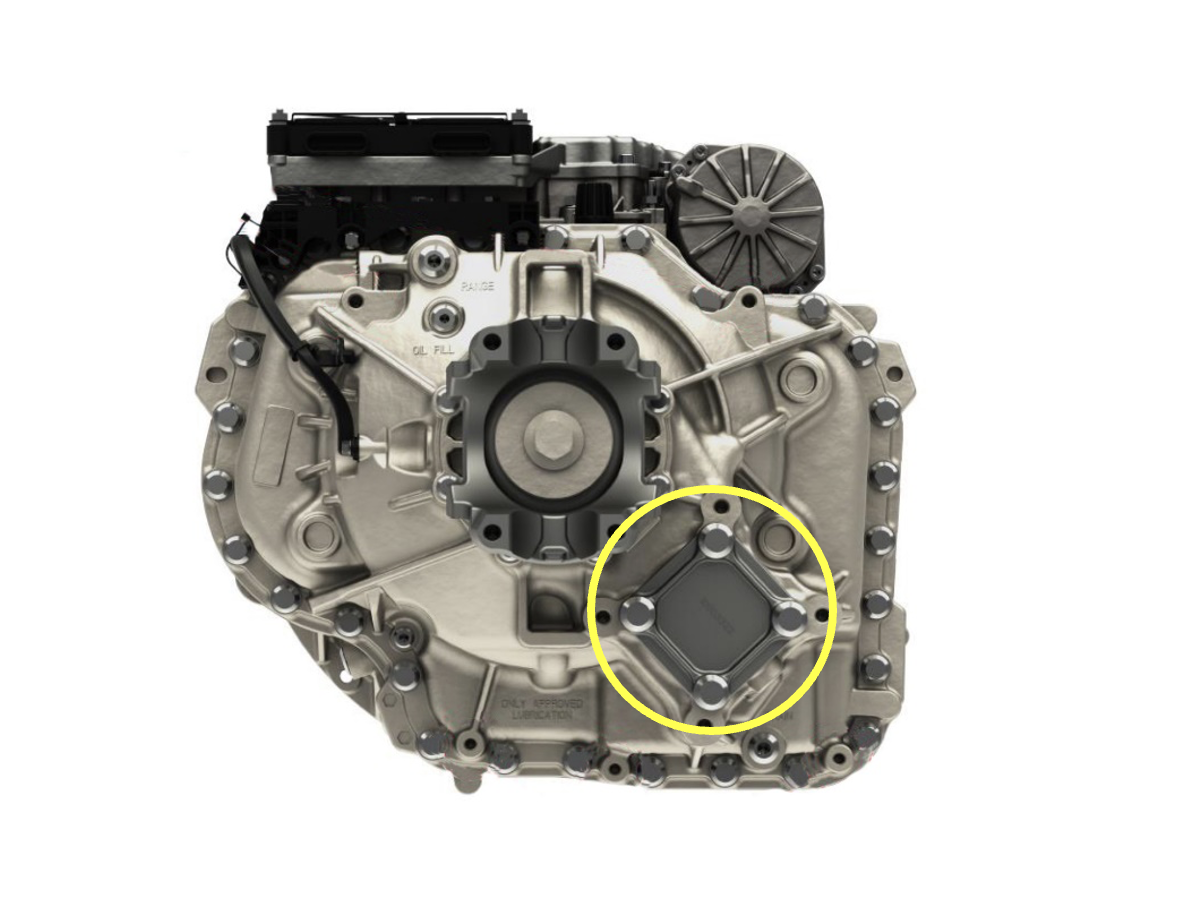

Logan has PTO clutches under development for Endurant HD platform models in additional mounting positions (bottom), in addition to its new rear countershaft PTO offerings.

________________________

Sources and Citations

• Muncie Power Products: “MP19-01 P81 and P84 Series”
(published Endurant rear PTO ratios and intermittent torque ratings).

• Bezares 95X13D and 95X15D literature.

• Chelsea 524 series literature HY25-0196-B1 /US Nov. 2025

• Cummins-Eaton Endurant XD Series PTO Installation and Body Integration Guide: TRIG2620EN-US Feb. 2026

• Logan Clutch Corporation Source Documents., which reflect 430 lb-ft continuous torque where applicable.
