Bell Housing PTO's

For Single and Multiple
Pad Pump Drives

Request More Information

Bell Housing PTO’s for Single and Multiple Pad Pump Drives, Hydraulically or Pneumatically Actuated

Logan PTO clutches are designed to retrofit within existing bell housings of popular pump drive manufacturers such as:

  • Funk
  • Twin Disc®
  • Durst
  • Gear Products
  • Marco

Complete Logan PTO clutches are available as original equipment or as a field retrofit.

Twin Disc is registered trade mark of Twin Disc Inc.

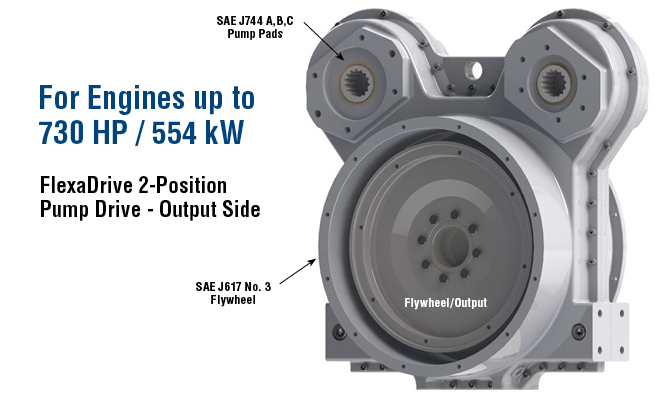

  • For Engines up to 730 HP / 554 kW, FlexaDrive 2-Position Pump Drive - Output Side
  • Funk 2800 Series, Double Direct Drive Pump SAE#3 Housing and B Pad (Retrofitted with Logan LC-211 Hydraulic Clutch)
  • Funk 2800 Series, Single Direct Drive Pump SAE#3 Housing and B Pad (Retrofitted with Logan LC-110 Hydraulic Clutch)
  • Logan LCT Clutch. Pump Drive.

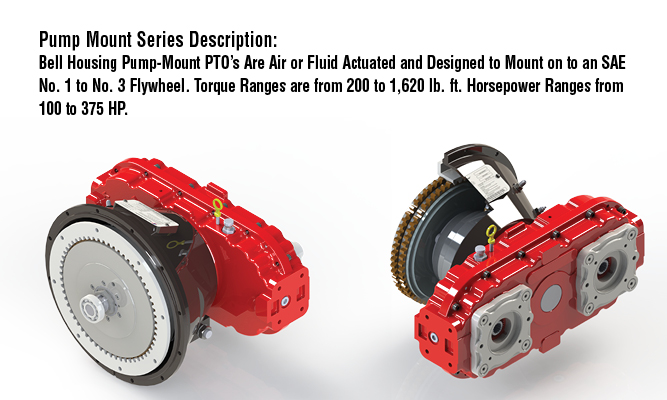

  • Pump Mount Series Description: Bell Housing Pump-Mount PTO Are Air or Fluid Actuated and Designed to Mount on to an SAE No. 1 to No. 3 Flywheel. Torque Ranges are from 200 to 1,620 lb. ft.

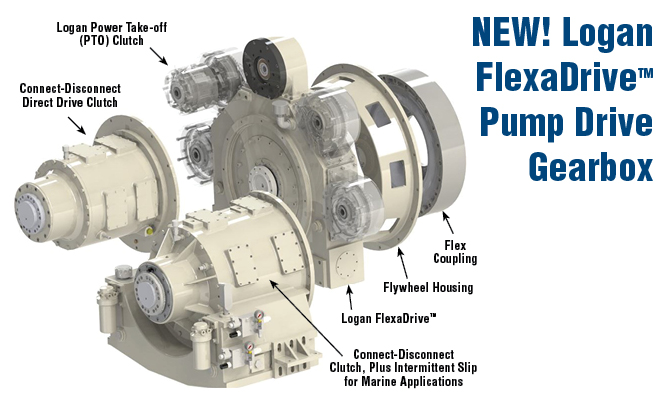

  • NEW! Logan FlexaDriveTM Pump Drive Gearbox
  • Side View of FlexaDrive Showing Logan Direct Drive Bell Housing PTO Coupled Between Engine and FlexaDrive.

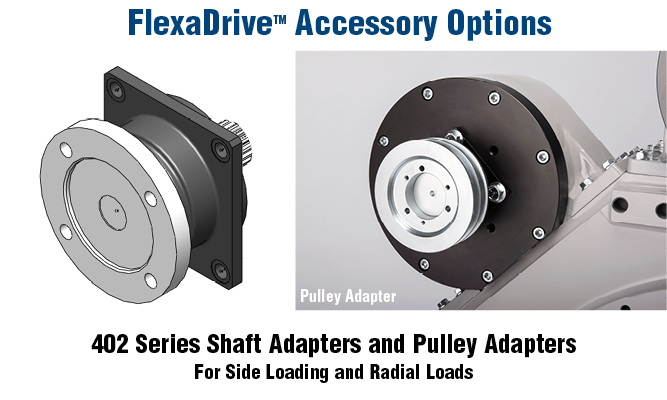

  • FlexaDrive Accessory Options. 402 Series Shaft Adapters and Pulley Adapters For Side Loading and Radial Loads
  • FlexaDrive Accessories. LCT Series Air and Hydraulic Input Mounted Clutches For Main Drive Line Used With Hybrid Main Drive and Front of Engine PTO Applications
  • FlexaDrive Accessories Options. Logan Power Take-Off (PTO) Clutches for PTO Towers
  • U.S. Hybrid Tug, The Campbell Foss Campbell Foss Was the World Second Hybrid Tug.
  • Logan Connect-Disconnect Bell Housing PTO Clutch. Operates Wet (Oil Bath) or Dry
  • Logan Bell Housing Clutches are Also Designed for Intermittent or Continuous Slip, for Dynamic Positioning. With Optional J-1939 Communication for Standard Engine Protocol.
  • For Engines up to 730 HP / 554 kW, FlexaDrive 2-Position Pump Drive - Input Side

Applications:

  • Hybrid drive systems
  • Industrial drives / gensets
  • Mobile equipment
  • Blowers, vacuums, fans
  • Snow removal equipment
  • Marine propulsion / auxiliary drives
  • Tree and brush chippers

Advantages:

  • Air or fluid actuated for remote activation
  • Self-Adjusting™ Disc Pack - flow control engagement
  • Eliminates mechanical linkages, hand levers, and yokes
  • Available with or without pilot bearing
  • Heavy-duty side load models available
  • Modified standards available

Logan Bell Housing PTOs – Gear Boxes / Drop Boxes

Logan PTO Clutches can be incorporated into a gearbox or drop-box application. Clutches are used to engage drive systems on the fly or in situations where pumping or work stations require periodic, intermittent activation.

Pump Drive Applications | Logan Clutch

Features:

  • Connect / disconnect for mobile equipment
  • Air / fluid actuation
  • Self-adjusting disc pack eliminates linkages, yokes, lever arms
  • SAE # 00 to SAE # 4 Housings



NEW! Logan Front of Engine Multi-Pad Hydraulic Pump Drives

Clutch enabled, multi-pad gearboxes for close coupled or rigidly mounted engines

Clutch enabled, multi-pad gearboxes for close coupled or rigidly mounted engines

ADVANTAGES:

  • No Pilot bearing required
  • Gearbox supports the Pneumatic or Hydraulic actuated clutch
  • Remote actuation from control panel of bridge
  • Available in popular configurations for most SAE Pumps
  • AGMA Class 10 gears for less noise, less heat and longer life
  • Fully sealed for reduced oil leak paths
  • Multiple standard gear ratio options

Clutch enabled, multi-pad gearboxes for close coupled or rigidly mounted engines
