Water Jetting

Clutches for Water Jetting Equipment

Logan offers a variety of clutch and brake solutions for Waterjet Blasting Equipment, Hydro Excavation Equipment, Vacuum Trucks, and Water Recycling Equipment.

Clutches are designed in a series; are hydraulically or pneumatically actuated, and can operate in a wet (oil) or dry environment. Modified standards can be engineered to meet specific customer and application design requirements which are outside of our standard catalog offering (Torque, RPM, Horsepower, or Envelope).

Logan is an OEM Manufacturer. Products are manufactured and assembled in the U.S.A. Logan Sales, Engineering and Manufacturing Service Personnel are available to answer questions regarding catalog specs, parts and service Details, and inquiries regarding your specific design requirements. Global Parts and Service are available 24/7 through Logan and our Dealer / Distributor Network.

  • Jetstream X-4200 series waterblaster with Logan LC-314 with soft-startTM feature
  • Jetstream X-4200 series waterblaster with Logan LC-314 with soft-startTM feature
  • Jetstream X-4200 series waterblaster with Logan LC-314 with soft-startTM feature

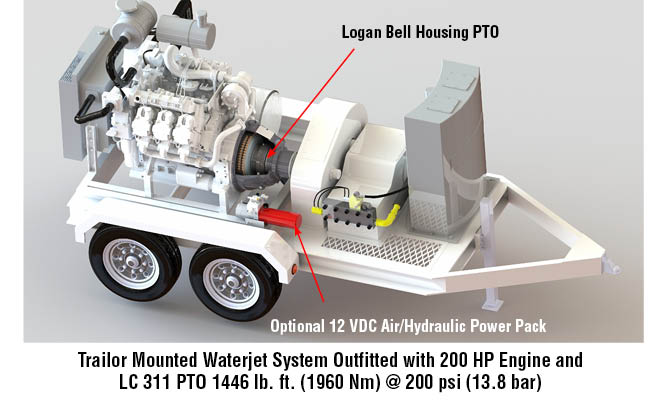

  • Trailor Mounted Waterjet System Outfitted with 200 HP engine and LC 311 PTO 1446 lb. ft. (1960 Nm) @ 200 psi (13.8 bar)

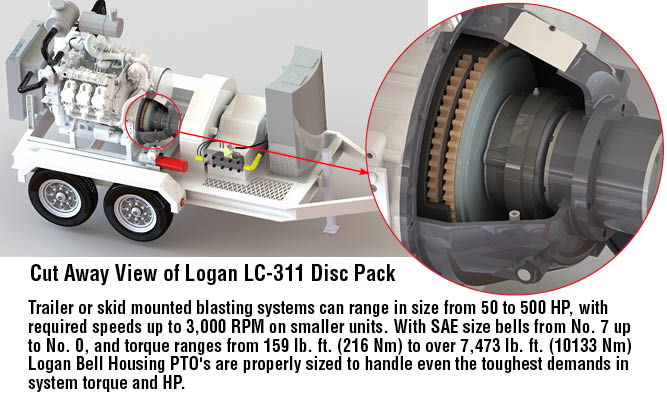

  • Trailer or skid mounted blasting systems can range in size from 50 to 500 HP, with required speeds up to 3,000 RPM on smaller units. With SAE size bells from No. 7 up to No. 0

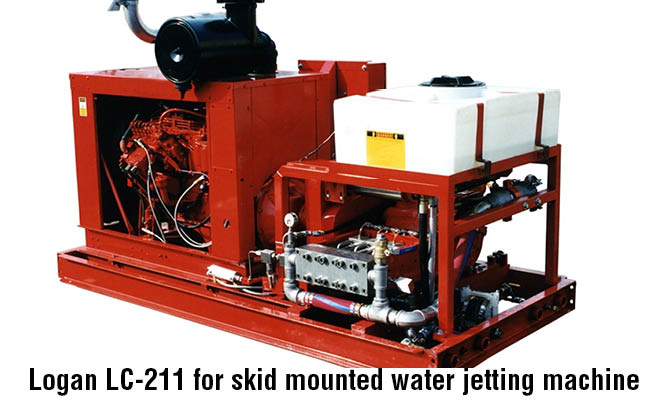

  • Logan LC-211 for skid mounted water jetting machine
  • Logan LC-211 for skid mounted water jetting machine
  • Logan self-adjusting, hydraulically activated LC-314 Bell Housing PTO clutch installed on a Jetstream X Series Waterblaster

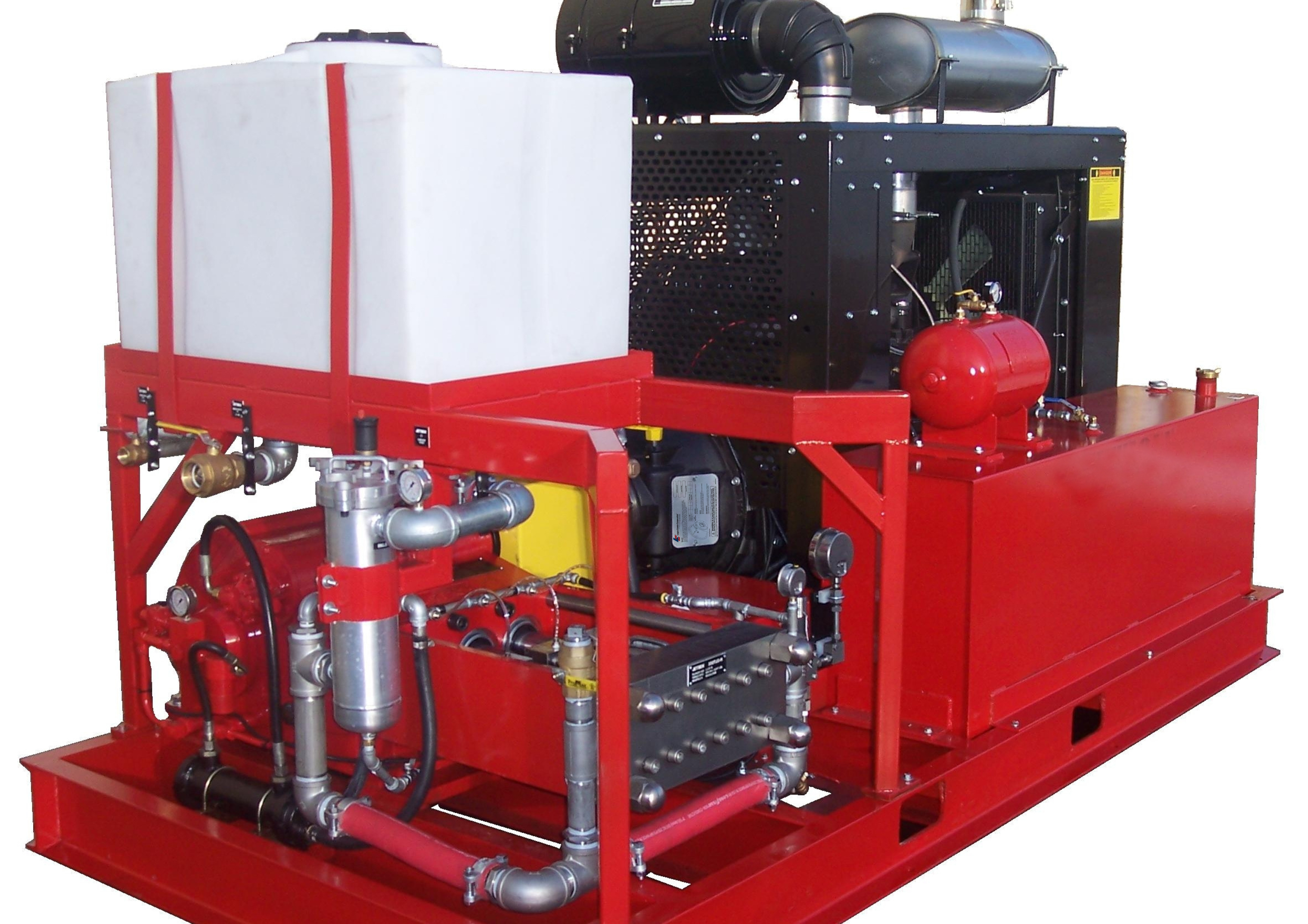

  • Skid Mounted Waterjet System Outfitted with 200 HP engine and LC-211 PTO
  • Mechanical PTO clutch with old-style lever arm
  • Push-button activation and self-adjusting disc pack simplifies machine operation
  • Push button activation from a control panel or device is now possible. Richard Alderson - Jetstream

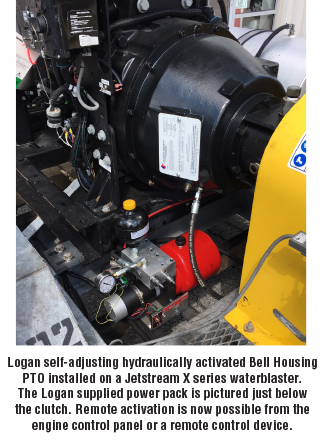

  • Logan self-adjusting hydraulically activated Bell Housing PTO installed on a Jetstream X series waterblaster
Bell Housing PTO

Bell Housing PTO

Logan Air / Fluid actuated Bell Housing PTO clutches are self- adjusting and designed to mount directly to a diesel or gasoline engine's flywheel. The friction disc packs optimize dry operation and actuation is accomplished through a stationary cylinder-piston arrangement or through internal shaft and clutch passages.

Read More

SAE Direct Drive PTO

SAE Direct Drive PTO

Logan Power Take-off (PTO) Clutches are used in a variety of Industrial, On-Highway, Marine, Construction, Agriculture, Mining, Oil Field, and Rail applications. They are designed to mount between the power take-off of the engine and auxiliary attachment, ie. single multi-station pump drive

Read More

Waterblasting Case Studies

Waterblasting Case Studies

View case studies for the waterblasting industry.

Read More
