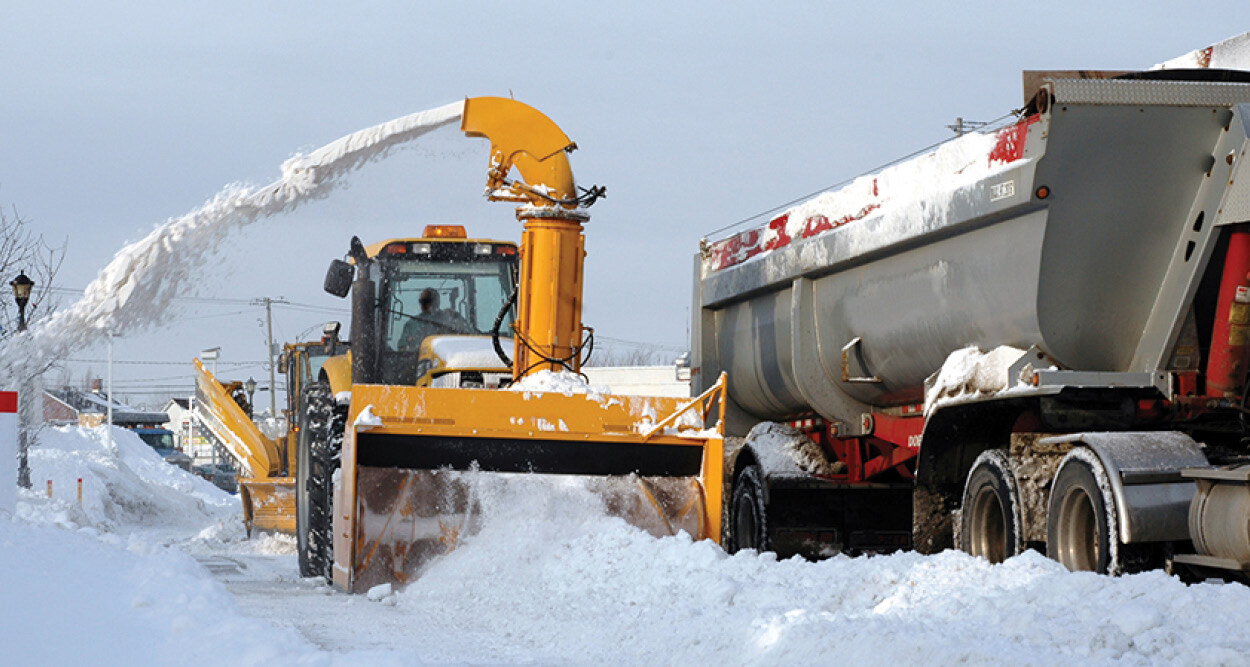

When it comes to clearing airport runways and city streets during harsh winter storms, reliability and efficiency are non-negotiable. Logan Clutch, a leader in hydraulic clutch solutions, provides robust PTO clutches designed specifically for snow-blowing applications. For over 25 years, Logan has supported self-propelled airport snow blowers, loader-mounted snow blowers, and municipal vehicles, delivering unmatched performance for snow removal.
High-Performance Example: The Logan LC-314 Bell Housing PTO
One standout in Logan’s product line is the Logan LC-314 Bell Housing PTO, powered by a CAT C-18 800 HP (5,965 Nm) engine. This powerful clutch can handle up to 5,000 tons of snow per hour, throwing it as far as 200 feet—equivalent to an impressive 1.4 tons per second. Designed to transmit 2,702 lb-ft of torque at 200 psi, this SAE No. 1 flywheel-mounted clutch is ideal for demanding applications that require rapid, efficient snow clearance.
How Logan Clutches Work
Logan clutches are available in series and can be either hydraulically or pneumatically actuated. For snow blower applications, the clutches are enclosed within a bell housing and operate in a dry environment, ensuring dependable performance in harsh conditions. Additionally, Logan offers a variety of clutch models to meet specific application requirements.
Customized Solutions for Diverse Needs
Logan’s engineering team can modify standards to meet unique customer needs, including adjustments to torque, RPM, horsepower, or dimensions. This flexibility ensures that each Logan clutch is tailored to optimize performance in your specific application.
Typical Applications for Logan Bell Housing PTO Clutches (100 HP to 800 HP)
Logan Bell Housing PTO clutches support a variety of high-power applications across municipal and airport snow removal, including:
-
Municipal Tractor / Sidewalk Blowers: The Logan LC-111 Series Bell Housing PTO, powered by a Cummins QSB 4.5 110 HP engine, can cast snow up to 70 feet and move 700 tons per hour. It transmits 480 lb-ft of torque at 200 psi, making it perfect for urban snow-clearing needs.
-
Medium and Heavy-Duty Loader-Mounted Blowers: For larger snow blowers with up to 112" cutting widths, the Logan LC-311 Bell Housing PTO pairs seamlessly with engines like the CAT C13 (415 HP) or Cummins QSL-9 (350 HP) to tackle heavy-duty tasks.
-
Heavy-Duty Snow Blower Trucks for Airports: The Logan LC-314 Bell Housing PTO, in combination with a CAT C-18 800 HP blower engine, achieves maximum efficiency, capable of casting snow up to 200 feet—ideal for airport runway clearance.
With smooth and positive engagement, Logan clutches require minimal break-in time, allowing for maximum torque transfer and enabling snow to be thrown up to 175 feet (53 meters), even in heavy and wet conditions.
About Logan Clutch
Logan is a family-owned company with over 50 years of experience, serving OEMs in marine, mobile, and industrial markets. Manufactured and assembled in the U.S.A., Logan products are backed by global parts and service support, with shipments from their Westlake, Ohio warehouse. The Logan sales, engineering, and manufacturing teams are ready to discuss catalog specifications, service options, and custom design needs to ensure optimal performance.
For more information or to discuss your application, contact sales today! Our team looks forward to helping you achieve reliable, efficient snow removal with Logan’s industry-leading PTO clutches.
