The torque capacity of the clutch is directly proportional to the operating pressure. Maintaining the lowest pressure possible to transfer the desired torque will enable the clutch to run cooler and extend the life of the internal bearings.
PTO 600 Specifications
| U.S | S.I. | |
|---|---|---|
| *Rated Torque (Maximum) | 600 Ft/Lbs | 813 Nm |
| Maximum HP | 342 HP | 255 KW |
| *Maximum RPM | 3000 RPM | 3000 RPM |
| Rotation | Bi-rotation | Bi-rotation |
| Maximum Actuation Pressure | 200 psi | 13.8 Bar |
| Displacement (Maximum) | 3.5 in3 | 57 cm3 |
| Minimum Flow Rate Required | 1.5 GPM | 5.6 Liters/min |
| Operating Media at Clutch (Oil or Air) | Standard | Standard |
| Maximum Back Pressure to Tank | 7 psi | 0.5 Bar |
| Maximum Fluid Temperature | 200º F | 93º C |
| Material - Output Hub | Alloy Steel | Alloy Steel |
| Material - Housing | Aluminum | Aluminum |
| External Finish - Output Hub | Alloy Steel | Alloy Steel |
| External Finish - Housing | Anodized | Anodized |
| Wet input seal (Optional) | 30 psi | 2 bar |
| Weight (Approximate) | 45 Lbs | 20 Kg |
* Consult Logan Clutch for applications that require lower actuation pressure or increased torque and rpm requirements.

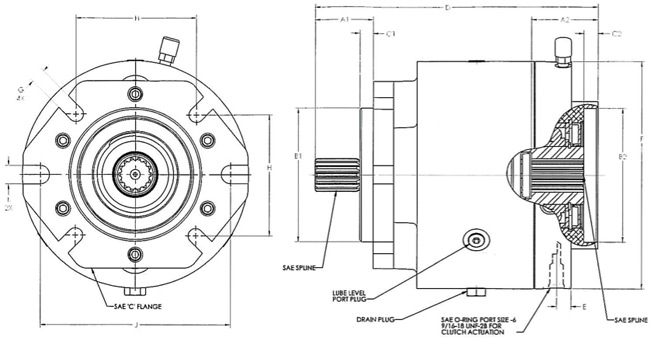

Dimensions
|
SAE FACE
(input & output) |
C 2/4 bolt pattern |
B2 |
5.000 in
127 mm
|
F |
8.50 in
215.9 mm
|
| SAE SPLINE |
C/14T, 12/24 DP
Input & Output
|
C1 |
0.5 in
12.7 mm
|
G |
0.56 in
14.2 mm
|
| A1 |
2.18 in
55.4 mm
|
C2 |
0.53 in
13.5 mm
|
H |
4.51 in
114.5 mm
|
| A2 |
2.50 in
63.5 mm
|
D |
10.62 in
269.7 mm
|
J | 7.125 in 181 mm |
| B1 |
5.000 in
127 mm
|
E |
0.55 in
14 mm
|
K | 0.69 in 17.5 mm |
PTO 600 Series Static Torque Ratings
PSI (Ratings in ft. lbs.) |
|||
|---|---|---|---|
| Model 600 |
100 | 150 | 200 |
| 441 | 713 |
985 |
|
PTO 600 Series Static Torque Ratings
BAR (Ratings in Nm) |
|||
|---|---|---|---|
| Model 600 |
6.9 | 10.3 | 13.8 |
| 598 | 967 | 1336 | |
