Logan FlexaDrive™ Series Description:
The Logan FlexaDrive multiple pump drive system is a self-contained gearbox with integral flexible coupling, providing full engine power between your engine (power take-off) and transmission. Various step-up gear ratios are available for direct drive PTO’s. An integral Flexible coupling is part of the system to dampen torsional vibration. Logan FlexaDrives mount to all standard SAE flywheel housings ranging from No. 3 to No. 00.
2-Position Pump Drive System
For Engines up to 700 HP (522 kW)
The Logan 2-Position Pump Drive is outfitted with up to four (4) PTI / PTO pads, and can accommodate up to 730 HP (544 kW) Engines, with maximum Speeds up to 2600 RPM, and a maximum of 160 HP (120kW) per tower under continuous duty.
- Input Housing SAE No. 1 – No. 3
- Output Housing SAE No. 3
- Pump Pads SAE A – SAE C
- Speed increase pump pad ratios 1:1, 1:1.16, 1:25
- Continuously Rated – Total 300 HP (225 Kw)
- Continuously Rated – Per Tower 160HP (120 Kw)
- Integrated Reservoir
Logan Direct Drive Power Take-off (PTO) Clutches
How They Work:
Direct Drive PTO’s are self-contained, fluid or air activated clutches, positioned between a live PTO pad and hydraulic pump.
PTO Clutch Advantages:
- Reduces fuel consumption and CO2 emissions by engaging drives and pumps only when required
- Better Engine Starts: Reduces horsepower draw and cranking power required during machine start-up by disconnecting the hydraulic system from the engine
- Reduced ambient noise through intermittent use of pumps and equipment
- Cooler running hydraulic systems: Heat is generated whenever oil dumps from high to low pressure without producing work. Disconnecting the PTO Clutch reduces the destructive effects of heat – lowering maintenance costs and hydraulic oil service requirements
- Extends the life of drive systems and components
- Standard PTO clutches available in B, B-B, C, C-C, and other popular sizes

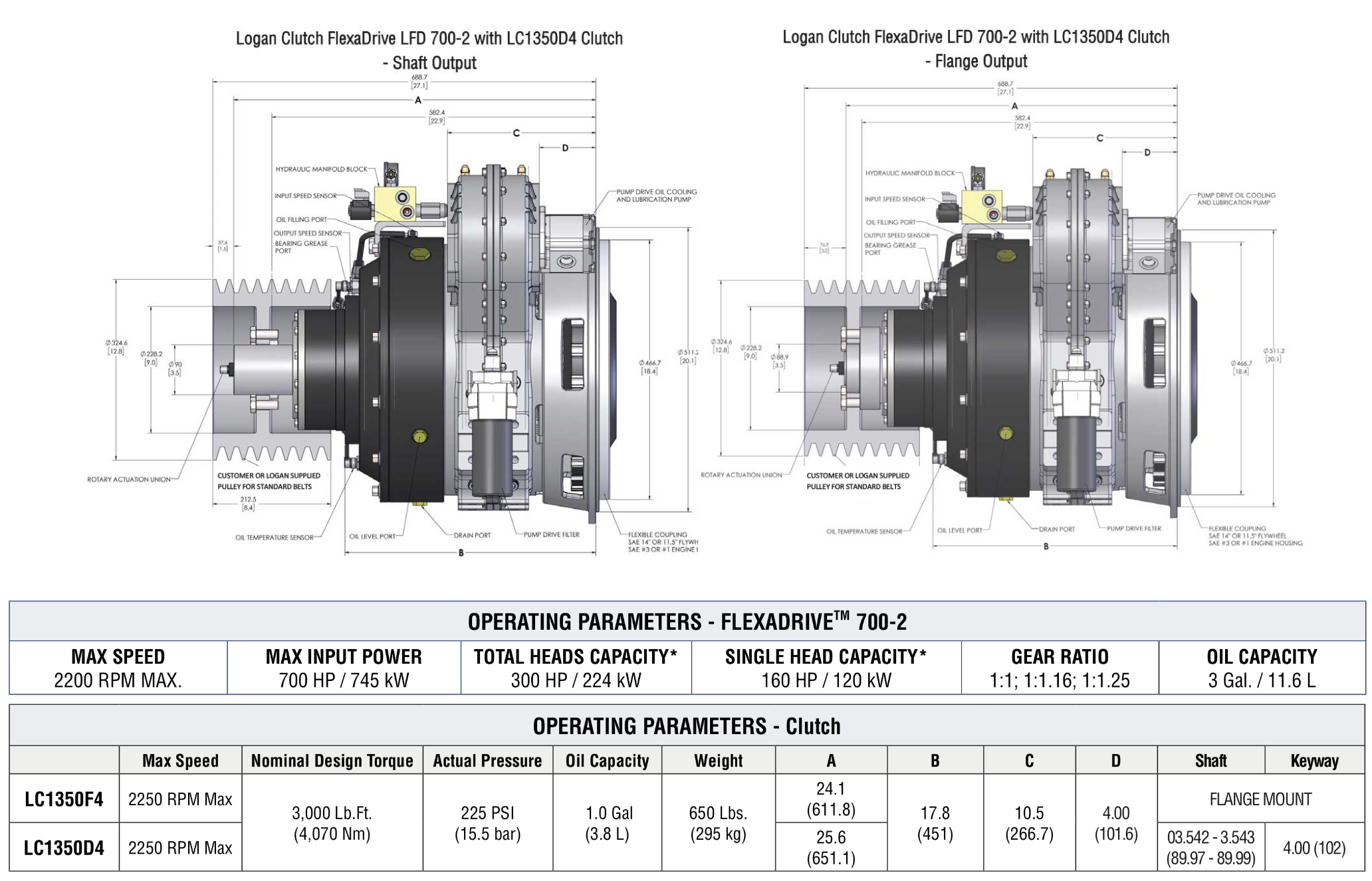

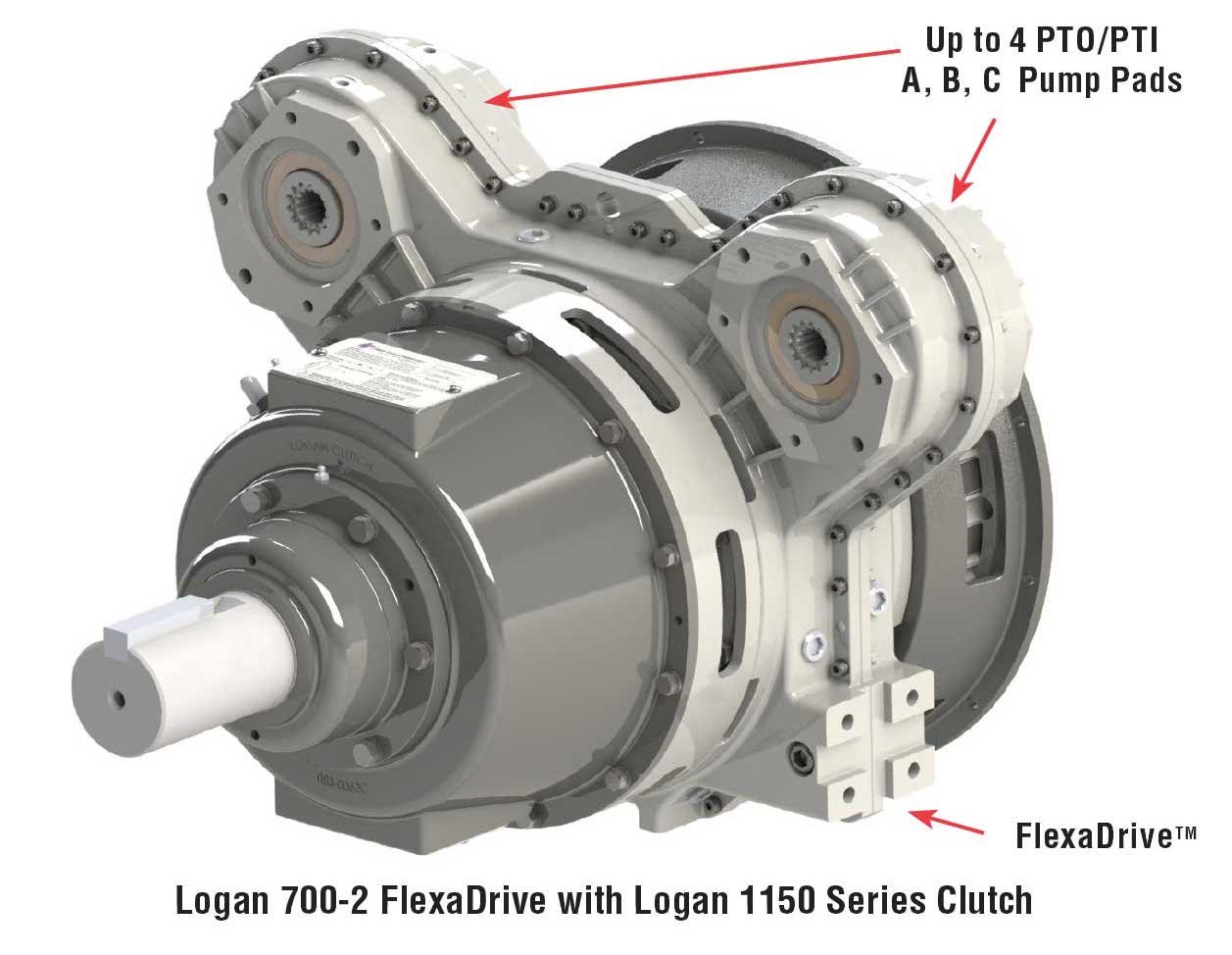

Logan FlexaDrive™ LFD 700-2 with LC1350D4 Clutch with Shaft or Flange Output
LCL-711 Color Display:
The optional LCL-711 is a solid-state color graphical microcontroller based display. Display provides communication messages through the J1939 network to equipment and to the display screen for simple man-machine interface.
US Patent No. 5,730,037
LCL-442 I/O Module:
The LCL-442 is a solid- state microprocessor based module. Delivered in a clear enclosure, this unit provides 10 inputs and 4 outputs in a compact and economical I/O interface.
Designed for use as a stand-
alone unit or with the display, the LCL-442 is offered with LED indicators for each input, which simplifies troubleshooting in the field.
INPUTS / MONITORING:
- Input Speed
- Output Speed
- Temperature
- Thermal Overload Detection
- Pressure Transducer Status
- Local/Remote Engage/Disengage
- External Fault/Prevent Run
COMMUNICATION:
- J1939 Communication • WiFi Capable
- OUTPUTS:
- Clutch Status: engaging, engaged, and disengaged
- CAN Messages
- Clutch Status Indicator
- Clutch ON/OFF with SOFTSTART™
- Brake ON/OFF
LCL-T07 WiFi Module:
The LCL-T07 is a solid-state microprocessor based module, delivered in a Deutsch enclosure, with a WiFi wireless interface.
LoganNet WiFi feature allows for monitoring the status and health of a machine or fleet of machines. The data and parameter settings are available via any WiFi-enabled smartphone, tablet or PC, without having to download a single piece of software. Also, download any data to your PC or USB memory device.
The LCL-T07 is configured with 2GB of data storage, enabling it to handle most OEM data logging applications.
