Logan FlexaDrive™ Series Description:
The Logan FlexaDrive multiple pump drive system is a self-contained gearbox with integral flexible coupling, providing full engine power between your engine (power take-off) and transmission. Various step-up gear ratios are available for direct drive PTO’s. An integral Flexible coupling is part of the system to dampen torsional vibration. Logan FlexaDrives mount to all standard SAE flywheel housings ranging from No. 3 (not pictured) to No. 00.
2-Position Pump Drive System For Engines up to 1000 HP (745 kW)
The Logan 2-Position Pump Drive is outfitted with up to four (4) PTI / PTO pads, and can accommodate up to 1000 HP (745 kW) Engines, with maximum Speeds up to 2200 RPM, and a maximum of 160 HP (120kW) per tower under continuous duty.
- Input Housing SAE No. 1 – No. 3
- Output Housing SAE No. 1 – No. 3
- Pump Pads SAE A – SAE D
- Continuously Rated – Both Towers 300 HP (225Kw)
- Continuously Rated – Per Tower 160 HP (120Kw)
- Integrated Reservoir – Eliminates need for secondary tank
- Pump Drive Towers can be positioned up to 45o in either direction
- Reverse Compatible Envelope with Leading Brands
Logan Clutch LPTO 1450 Series FlexaDrive™ Clutch Pump Drive Operating Parameters

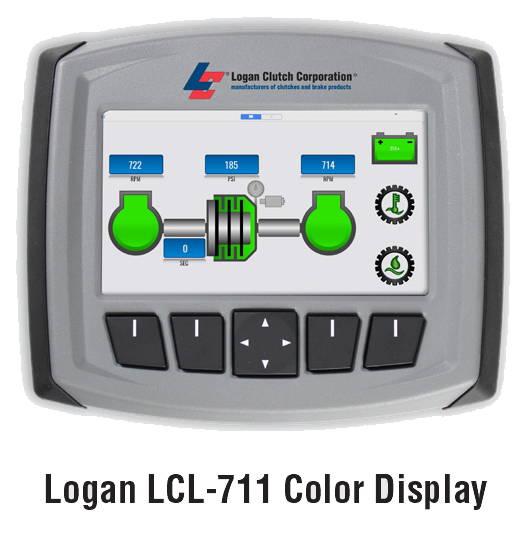

LCL-711 Color Display:
The optional LCL-711 is a solid-state color graphical microcontroller based display. Display provides communication messages through the J1939 network to equipment and to the display screen for simple man-machine interface.
US Patent No. 5,730,037

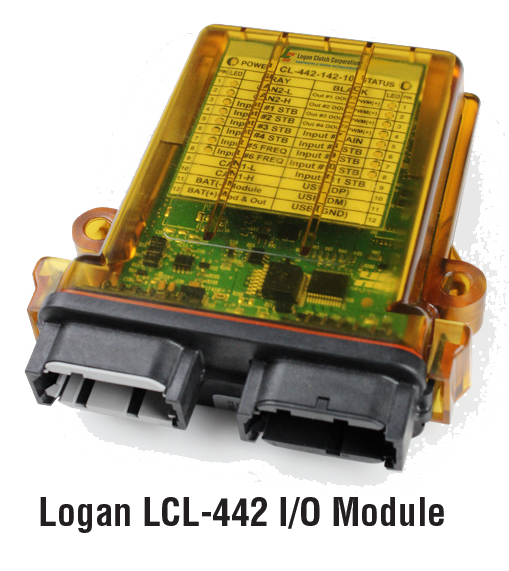

LCL-442 I/O Module:
The LCL-442 is a solid- state microprocessor based module. Delivered in a clear enclosure, this unit provides 10 inputs and 4 outputs in a compact and economical I/O interface.
Designed for use as a stand-
alone unit or with the display, the LCL-442 is offered with LED indicators for each input, which simplifies troubleshooting in the field.
INPUTS / MONITORING:
- Input Speed
- Output Speed
- Temperature
- Thermal Overload Detection
- Pressure Transducer Status
- Local/Remote Engage/Disengage
- External Fault/Prevent Run
COMMUNICATION:
- J1939 Communication • WiFi Capable
- OUTPUTS:
- Clutch Status: engaging, engaged, and disengaged
- CAN Messages
- Clutch Status Indicator
- Clutch ON/OFF with SOFTSTART™
- Brake ON/OFF
LCL-T07 WiFi Module:
The LCL-T07 is a solid-state microprocessor based module, delivered in a Deutsch enclosure, with a WiFi wireless interface.
LoganNet WiFi feature allows for monitoring the status and health of a machine or fleet of machines. The data and parameter settings are available via any WiFi-enabled smartphone, tablet or PC, without having to download a single piece of software. Also, download any data to your PC or USB memory device.
The LCL-T07 is configured with 2GB of data storage, enabling it to handle most OEM data logging applications.
