Front PTO Clutches for CAT Engines

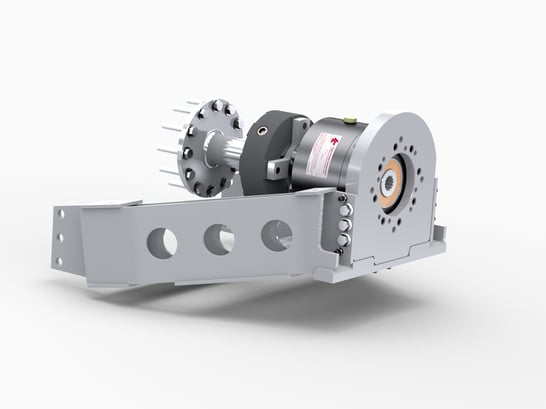

Logan Front Mount PTOs for Cat C6.6, C4.4, C32, 3512 and 3516 Diesel Engines

Front of Engine Mount PTO brochure32



Features:

  • Air or fluid actuated from 90 to 140 psi.
  • 25% more torque (1084 lb. ft.) and higher engagement speeds (1800 RPM).
  • The low profle, compact, Logan PTO design is suitable for workboats, fishing boats and Logan PTO pleasure craft.
  • Integrated torsional isolation coupling.
  • The Logan PTO aids in the reduction of emissions, energy, fuel costs and wear and tear on auxiliary attachments.
  • Engagement up to 1800 RPM's with optional SOFTSTART™ control.
  • Multiple optional accessory control packages to suit every model.
  • Output: SAE B, SAE C pump mount flanges and popular Dana shaft adapters.
  • No additional support required with up to a 300lb/136kg pump with a 26 3/8"/670mm CG

Advantages:

  • During maneuvering – which requires reduction of main engine speed, the
  • Logan PTO is used as a separate power source for bow and stern thrusters.
  • The PTO directly connects to a pump drive, which powers winches, reels, hoists, and deck pressure washers.
  • The PTO can be coupled to an alternator to supply electric power to other power consumers on the vessel.

900-5907 2

Logan Front of Engine PTO Clutches for popular CAT Engines. Maximum torque transfer within small envelope.
