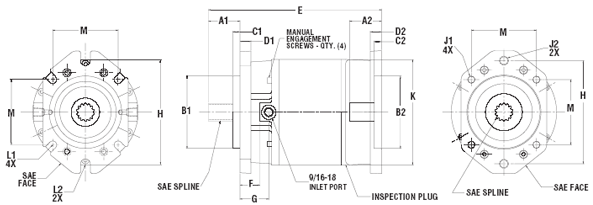

Dimensions
|
SAE FACE |
C |
B2 |
5 in |
E | 13.24in 336.3mm |
J2 | 0.635-11 in 15.9 mm |
|
SAE SPLINE |
C |
C1 |
0.5 in |
F | 1.39in 35.2mm |
K | 7.28 in 185.0 mm |
|
A1 |
2.19 in |
C2 |
0.53in 13.5mm |
G | 1.99 in 50.5 mm |
L1 | 0.562 in 14.3 mm |
|
A2 |
2.25 in |
D1 |
0.76in 19.4mm |
H | 7.125 in 181.0 mm |
L2 | 0.688 in 17.5 mm |
|
B1 |
5 in |
D2 |
0.78in 19.8mm |
J1 | 0.50-13 in 12.7 mm |
M | 4.508 in 114.5 mm |
PTO 750 Specifications
|
U.S. |
S.I. |
|
|---|---|---|
|
*Rated Torque (Maximum) |
750 Ft/Lbs |
1017 Nm |
|
Maximum HP |
429 HP |
320 Kw |
|
*Maximum RPM |
3000 RPM |
3000 RPM |
|
Rotation |
Bi-rotation |
Bi-rotation |
|
Manual Engagement |
Standard |
Standard |
|
Maximum Actuation Pressure |
120 psi |
8 Bar |
|
Minimum Actuation Pressure |
80 psi |
6 Bar |
|
Displacement (Maximum) |
14 in3 |
230 cm3 |
|
Minimum Flow Rate Required |
6 GPM |
22 Liters |
|
Operating Media at Clutch (Oil or Air) |
Standard |
Standard |
|
Maximum Back Pressure to Tank |
7 psi |
0.5 Bar |
|
Maximum Fluid Temperature |
180 F |
82 C |
|
Material - Flanges |
Aluminum |
Aluminum |
|
Shaft |
Alloy Steel |
Alloy Steel |
|
Housing |
Aluminum |
Aluminum |
|
External Finish - Flanges |
Anodized |
Anodized |
|
Shaft |
Alloy Steel |
Alloy Steel |
|
Housing |
Anodized |
Anodized |
|
Maximum Overhung Load at Bearing |
200 Lbs |
90.8 Kg. |
|
Wet input seal (Optional) |
30 psi | 2 bar |
|
Weight (Approximate) |
53 Lbs |
24 Kg. |
*Standard Configuration. Modified Standards Available.
* Consult Logan for applications that require lower actuation pressure or increased torque and rpm requirements.
The torque capacity of the clutch is directly proportional to the operating pressure. Maintaining the lowest pressure possible to transfer the desired torque will enable the clutch to run cooler and extend the life span of the internal bearings.
PTO 750 Series Static Torque Ratings
|
PSI (Ratings in ft. lbs.) |
|||||
|---|---|---|---|---|---|
|
Model |
80 |
90 |
100 |
110 |
120 |
|
750 |
765 |
888 |
1011 |
1134 |
1257 |
PTO 750 Series Static Torque Ratings
|
PSI (Ratings in ft. lbs.) |
|||||
|---|---|---|---|---|---|
|
Model |
5.5 |
6.2 |
6.9 |
7.5 |
8.3 |
|
750 |
1037 |
1204 |
1371 |
1538 |
1704 |
PTO 750 Series Shaft Options
|
Input Shaft / External |
Output Shaft / Internal |
|---|---|
|
*SAE C 14T/12-24 D.P. SAE C-C 17T/12-24 D.P. |
*SAE C 14T/12-24 D.P. SAE C-C 17/12-24 D.P. |
|
1.250 Diameter with 0.312 Keyway 1.500 Diameter with 0.375 Keyway |
|
