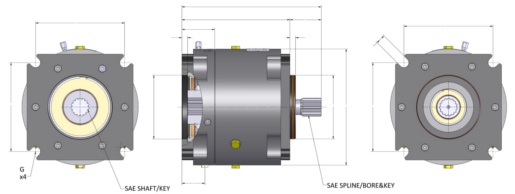

Dimensions
| A |
15.27 in 387.9 mm |
D3 |
7.003 in 177.9 mm |
G |
1.06 in 26.9 mm |
| B |
11.83 in 300.5 mm |
E1 |
3.44 in 87.4 mm |
K |
9.745 in 247.5 mm |
| C |
12.75 in 323.9 mm |
E2 |
0.63 in 16 mm |
L |
1.06 in 26.9 mm |
|
D1 |
3.50 in 88.9 mm |
E3 |
6.997 in 177.7 mm |
P |
1.25 in 31.8 mm |
| D2 |
0.63 in 16 mm |
F |
9.745 in 247.5 mm |
|
PTO 1200 Specifications
| U.S | S.I. | |
|---|---|---|
| *Rated Torque (Maximum) | 1500 Ft/Lbs | 1627 Nm |
| Maximum HP | 570 HP | 512 kW |
| *Maximum RPM | 2000 RPM | 3000 RPM |
| Rotation | Bi-rotation | Bi-rotation |
| **Maximum Actuation Pressure | 120, 200 or 320 psi | 8.3, 13.8 or 22.1 Bar |
| Min. Flow Rate Required | 1.5 GPM | 5.6 liters/min. |
| Operating Media at Clutch (Oil or Air) | Standard | Standard |
| Max. Back Pressure to Tank | 7 PSI | 0.3 bar |
| Maximum Fluid Temperature | 210° F | 80º C |
| Displacement | ||
| 15200 Series 200 PSI (New/Worn) | 4.9/6.5 in3 | 80/106 cm3 |
| 1550D Series 120 PSI (New/Worn) | 8.5/11.4 in3 | 139/187 cm3 |
| 1550D Series 320 PSI (New/Worn) | 3.6/4.8 in3 | 59/79 cm3 |
| Weight (Approx.) | 158 Lbs. | 72 Kg |
* Standard configuration. Modified standards available.
** Logan SAE PTO 1500 Series clutches are available in three (3) different actuation pressures. Refer to part number to determine model configuration.
PTO 1200 Series Shaft Options
Input Shaft/External Output Shaft/Internal*** |
|
|---|---|
| SAE 'F' Spline 15T 8/16 DP | SAE 'D' & 'E' Spline 13T 8/16 DP |
| Ø 2.437 x 5/8 Sq. Key | SAE 'F' Spline 15T 8/16 DP |
*** Contact Logan Clutch for alternative pump shaft options. The output end of the clutch (female spline/bore) is not capable of supporting any side load. Use overhung load adapters.
