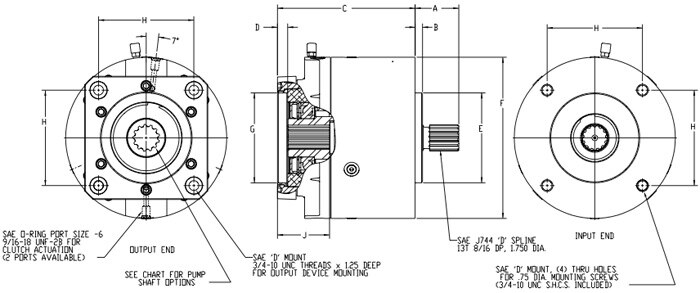

Dimensions
| SAE Face (input & output) | D 4-bolt pattern |
C | 8.58 mm 217.9 mm |
G | 6.002 in 152.5 mm |
| SAE Spline | D / 13T/ 8/16 DP |
D | 0.69 in 17.5 mm |
H | 6.364 in 161.6 mm |
| A | 2.93 in 74.4 mm |
E | 6.000 in 152.4 mm |
J | 3.48 in 88.4 mm |
| B | 0.62 in 15.7 mm |
F | 10.75 in 273.1 mm |
PTO 1000 Specifications
| U.S | S.I. | |
|---|---|---|
| *Rated Torque (Maximum) | 1000 Ft/Lbs | 1356 Nm |
| Maximum HP | 570 HP | 425 KW |
| *Maximum RPM | 3000 RPM | 3000 RPM |
| Rotation | Bi-rotation | Bi-rotation |
| Maximum Actuation Pressure | 110 psi | 7.6 Bar |
| Minimum Actuation Pressure | 90 psi | 6.2 Bar |
| Displacement (Maximum) | 8 in3 | 131 cm3 |
| Minimum Flow Rate Required | 1.5 GPM | 5.6 Liters/min |
| Operating Media at Clutch (Oil or Air) | Standard | Standard |
| Maximum Back Pressure to Tank | 4 psi | 0.3 Bar |
| Maximum Fluid Temperature | 180º F | 82º C |
| Material - Output Hub | Alloy Steel | Alloy Steel |
| Material - Housing | Aluminum | Aluminum |
| External Finish - Output Hub | Alloy Steel | Alloy Steel |
| External Finish - Housing | Anodized | Anodized |
| Wet input seal (Optional) | 30 psi | 2 bar |
| Weight (Approximate) | 63 Lbs | 29 Kg |
PTO 1000 Series Static Torque Ratings
PSI (Ratings in ft. lbs.) |
|||
|---|---|---|---|
| Model 1000 |
90 | 100 | 110 |
| 1284 | 1439 | 1595 | |
PTO 1000 Series Static Torque Ratings
BAR (Ratings in Nm) |
|||
|---|---|---|---|
| Model 1000 |
6.2 | 6.9 | 7.6 |
| 1741 | 1951 | 2162 | |
PTO 1000 Series Pump Shaft Options
Part No. |
Output Description |
|---|---|
| SDD-1004 | SAE ‘D’ spline 13T 8/16 DP |
| SDD-1005 | SAE ‘F’ spline 15T 8/16 DP |
-
Contact Logan Clutch for alternative pump shaft option
-
The output end of the clutch (female spline/bore) is not capable of supporting any side load. Use overhung loa adapters.
