Industrial / Specialty

Multiple Disc Clutches for Industrial and
Specialty Applications

Logan's Hydraulic / Pneumatic Clutches Have Multiple Industrial and Specialty Applications

Logan offers a variety of clutch and brake solutions for specialty applications, including:
Main and Auxiliary Propulsion, Hybrid Drives, Winches, Drawworks, Gensets, and Variable Speed Motor Generator.

Logan leads the way in manufacturing hydraulic / pneumatic clutches that are shaft mounted, bore and keyed and splined or modified. They are uniquely designed to easily connect and disconnect the driven units from an electric motor, engine or other power source. Applications include: automated packaging equipment, power dividers, material handling equipment, dynamometers and other specialty machinery.

Logan clutches are designed in a series, are hydraulically or pneumatically actuated, and can operate in a wet (oil) or dry environment. Our modified standards can be engineered to meet specific customer and application design requirements that are outside of our standard catalog offering (Torque, RPM, Horsepower, or Envelope).

Logan is an OEM manufacturer whose products are proudly manufactured and assembled in the U.S.A. Logan Sales, Engineering and Manufacturing and Service Personnel are available to answer your questions on catalog specs, parts and service details, and overall inquiries regarding your specific design requirements. Our Global Parts and Service department is available to you 24/7 through Logan and our Dealer / Distributor Network.

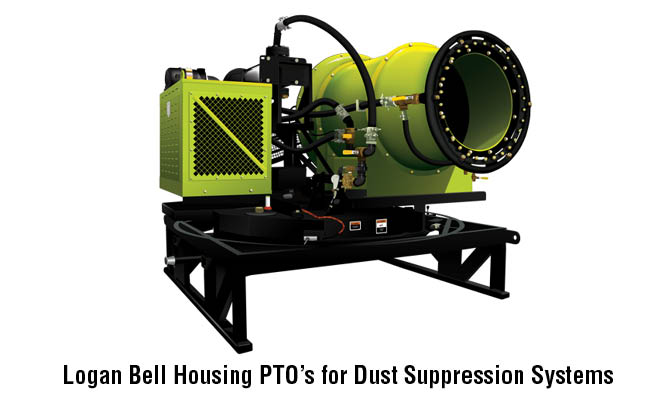

  • Logan Bell Housing PTO for Dust Suppression Systems
  • This Logan P80 Series Clutch and Drive Cup on this Automated Packaging System is Positioned to Act as a Power Applied Brake

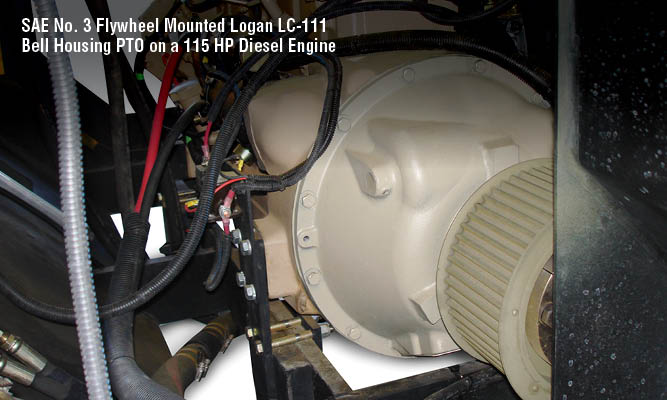

  • SAE No. 3 Flywheel Mounted Logan LC-111 Bell Housing PTO on a 115 HP Diesel Engine

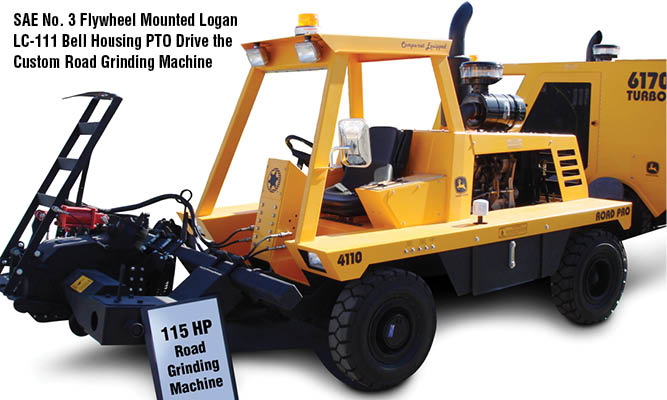

  • SAE No. 3 Flywheel Mounted Logan LC-111 Bell Housing PTO Drive the Custom Road Grinding Machine

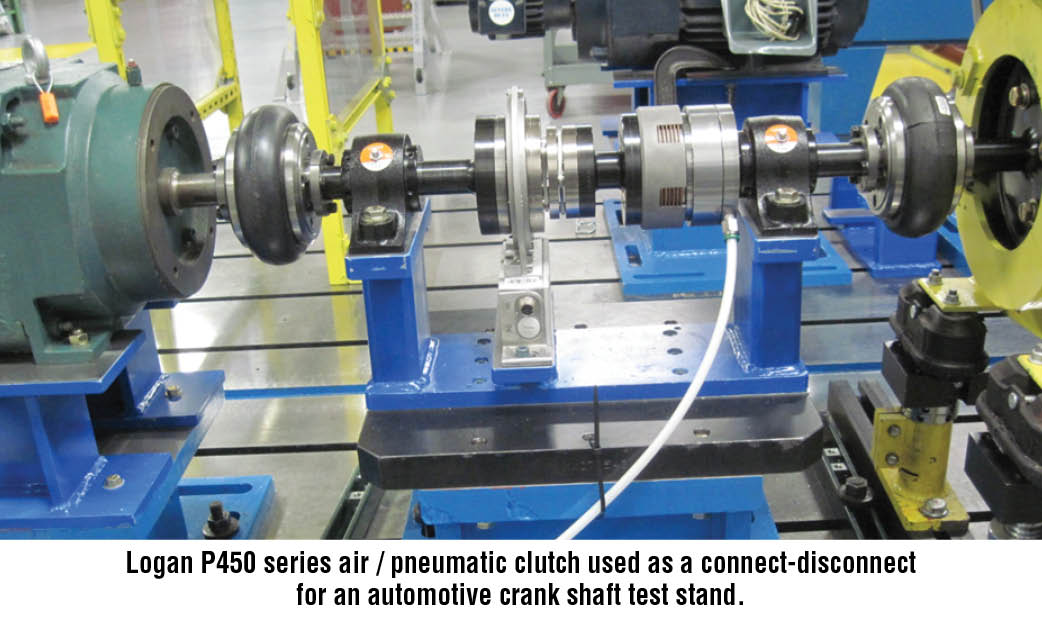

  • Logan P450 series air / pneumatic clutch used as a connect-disconnect for an automotive crank shaft test stand
Industrial Hydraulic Clutches and Pneumatic Clutches

Industrial Hydraulic Clutches and Pneumatic Clutches

Logan Fluid or Air actuated clutches, brakes, and clutch-brake combinations are used in a wide variety of Machine Tool, Industrial, Marine, Municipal, Mining and Off-Highway applications. Our attention to quality and service, along with the ability to modify standard units to meet specific customer needs, has led to the success and growth of Logan Clutch Corporation.

Read More

Bell Housing PTO Application

Bell Housing PTO Application

You can download the application fact sheets here.

Read More

SAE Direct Drive PTO Clutch Application

SAE Direct Drive PTO Clutch Application

SAE Direct Drive PTO Clutch Application

Read More

CH Series Clutches

CH Series Clutches

Type CH clutches are designed specifically for heavy duty clutch and brake applications, and can be air or hydraulically actuated. The friction disc packs are suitable for either wet or dry operation.

Read More

Specialty Applications Case Studies

Specialty Applications Case Studies

View case studies for specialty applications.

Read More
