Logan self-adjusting, hydraulically actuated Bell Housing Power Take-Off (PTO) clutches have been standard equipment on OEM marine and mobile equipment for over 18 years. Thousands of Logan units are in the field, operating on airport snow blowers, highway and airport marking and runway rubber removal equipment, and more recently trailor mounted waterblasting equipment. Logan self-adjusting, hydraulically activated LC-314 Bell Housing PTO clutch installed on a Jetstream X Series Waterblaster


Logan vs. Mechanical PTO’s

The advantage of the Logan Clutch is its ability to engage and disengage the water jetter hydraulically, through
push-button activation, eliminating the use of a mechanical hand lever or yoke type clutch engagement system, which dates back to the early 40’s. Smooth, Logan softstart™ engagement eliminates clutch downtime due to over and under adjustment. And since the Logan clutch is self-adjusting, clutch engagement is smooth and
consistent after hundreds of hours of use.

The mechanical clutch requires the operator to “hand engage” a clutch, which opens up the opportunity for untrained operators to slam the clutch into gear at high rpm’s. Another mode of failure is when operators will over or under tighten the adjusting collar on mechanical clutch to the point where the clutch is too loose and slips to failure or is over tightened and never disengages. Unfortunately, this happens during operating conditions, forcinMechanical PTO clutch with old-style lever armg the water jetter to return to the rental yard, leading to unproductive downtime, inconsistent operation and the endless frustration of machine renters, service center owners, and mechanics.

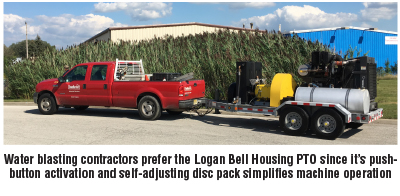

Water blasting contractors prefer the Logan Bell Housing PTO since it 19s push-button activation and self-adjusting disc pack simplifies machine operation


Making the Switch from Mechanical to Logan

Jetstream / FS Solutions Rental Center Makes the Switch from Mechanical to Logan

“Making the switch was easy”, says Richard Alderson of the FS Solutions, Hammond Indiana Office, “we pulled the old Mechanical Clutch and drive ring, along with all of the linkages, levers and yoke, and replaced the clutch with a Logan RP 314 Series clutch.” The Logan design uses the same shaft, drive ring and taper as the mechanical clutch, making the changeover relatively quick and easy. “All we had to do was install the Logan Bell Housing PTO Clutch, a power pack, and an on/off switch, and within a few hours we were ready for service” says Alderson. Logan Clutch would like to thank FS Solutions, of Hammond, IN for allowing them to retrofit the new self-adjusting PTO on the Jetstream X-Series unit.

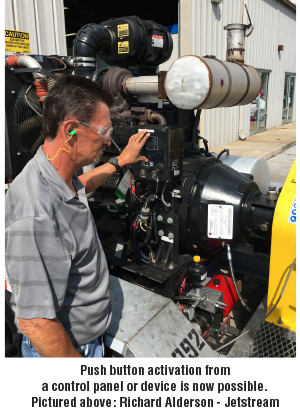

Logan Push Button Actuation - Eliminates Mechanical Linkages Push button activation from  a control panel or device is now possible.  Pictured above: Richard Alderson - Jetstream

Logan clutches are simple to operate. Push-button activation engages the clutch from a control panel or remote operating device. Hydraulic or pneumatic pressure via the Logan hydraulic power pack and maniford, clamps the cylinder and piston inside the clutch, which then engages the friction and steel separator discs with a Logan SoftStart™ feature - smoothly engaging the clutch. When pressure is removed, release springs separate the clutch, giving it ample running clearance while disengaged. Push-button, remote activation from a control panel, or cab is now possible.

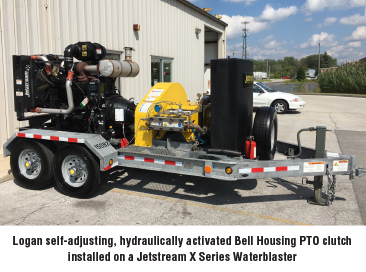

Logan self-adjusting, hydraulically activated Bell Housing PTO clutch installed on a Jetstream X Series WaterblasterLogan self-adjusting hydraulically activated Bell Housing PTO installed on a Jetstream X series waterblaster. The Logan supplied power pack is pictured just below the clutch. Remote activation is now possible from the engine control panel or a remote control device.











Category: mobile

Logan FlexaDrives and Power Take-Off (PTO) Clutches for Oil and Gas Applications

Logan FlexaDrives and Power Take Off (PTO) Clutches for Oil and Gas Applications

Posted By Andrew Logan
October 10, 2018 Category: Mobile

Logan FlexaDrive Series Description: The Logan FlexaDrive multiple pump drive system is a self-contained gearbox with integral flexible coupling, providing full engine power between your engine (power take-off) and transmission. Three (3) different models, offering from one (1) to five (5) pump towers, offer up to ten (10) PTO/PTI pump pads with bi-directional rotation for engines ranging from 200 HP (150 kW) to 5000 HP (3700kW) at a maximum 2600 RPM (modified standards available). Various step-up ratios are available for direct drive PTO’s, with standard ratios offered from 1:1 to 1:1.25.  Oil Field Applications: FlexaDrives are ideal for use in applications where they can be mounted between a diesel engine and Allison and Cat CX style transmission – transmitting full engine power through to the transmission, while offering up to 160 HP (120 kW) per tower for hydraulic pumps and equipment. 2-position Pump Drive System For Engines Up to 1000 HP (745 kw) The Logan 2-Position Pump Drive is outfitted with up to four (4) PTI / PTO pads, and can accommodate up to 1000 HP (745 kW) Engines, with maximum Speeds up to 2600 RPM, and a maximum of 160 HP (120 kW) per tower under continuous duty. Modified HP options available. Input Housing SAE No. 1 – No. 3 Output Housing SAE No. 1 - No. 3 Pump Pads SAE A – SAE D Continuously Rated – Total 300 Hp (225 kW) Continuously Rated – Per Tower 160 Hp (120 kW) Integrated Reservoir - Eliminates need

Logan Self-Adjusting Bell Housing PTO Clutches Now available for Field Retrofit into 2005 and older Oshkosh H-Series Blowers

Logan Self Adjusting Bell Housing PTO Clutches Now available for Field Retrofit into 2005 and older Oshkosh H Series Blowers

Posted By Logan Clutch
April 11, 2018 Category: Mobile, Snowblowing

Logan self-adjusting Bell Housing PTO clutches have been standard equipment on all Oshkosh H-Series Blowers manufactured since 2005. Hundreds of Logan units are in the field, operating at a high level of excellence and readiness for major U.S. Airports such as Chicago O’Hare, Boston Logan, Cleveland-Hopkins, Buffalo Airport, and more. The Logan Advantage: The advantage of the Logan clutch is its ability to engage the snow blower drivetrain hydraulically (for factory blower trucks), and pneumatically (for pre-2005 H-Series field retrofits). This eliminates the use of a mechanical hand lever or yoke type clutch engagement system, which requires frequent mechanical adjustments – many times during snow removal conditions, which leads to downtime and inconsistent operation. For example, mechanical clutches that were improperly adjusted, often led to disc wear and eventual clutch failure – requiring the truck to be taken out of commission, requiring many hours to pull the blower trucks drivetrain – and replace the clutch entirely with a new disc pack and linkages. Logan and Jackson Hole Airport: Logan Clutch provided Jackson Hole Airport with a reverse compatible Logan Retrokit®. This enabled some of these pre 2005 Oshkosh H-Series Blower Trucks to swap out their mechanical Twin Disc clutch with a Logan. “Making the switch was easy,” says Randy Knepper, Fire Chief Vehicle Maintenance Supervisor of Jackson Hole Airport. He continued

Logan PTO and CAT Genset

Logan PTO and CAT Genset

Posted By Logan Clutch
January 16, 2018 Category: General, Mobile

A major harbor tug operator in the US had a need to up-grade some of it’s old Detroit Diesel driven Gensets. This operator has the hydraulic requirements for the boat and deck winches provided by two hydraulic pumps mounted on the front of two redundant Gensets. (This is an alternate solution to main engine mounted hydraulic pumps and allows for the hydraulic systems to be run at the dock and without the mains being operated.)   In normal operation, one genset provided all of the ships power. The second genset provided all of the ships hydraulic requirements. In an emergency where additional electricity or additional hydraulic pump flow was required, the second unit could be used to provide additional resources. In the event of a failure, one genset could provide enough electricity and hydraulic flow for the boat to still operate until the first unit could be repaired, keeping a valuable piece of equipment operating and providing revenue. The clutch allowed the pump not being used to be disengaged, doubling the life of the pump and lowering the parasitic power draw from the genset engine. p.p1 {margin: 0.0px 0.0px 11.0px 0.0px; line-height: 13.0px; font: 10.0px Helvetica} p.p2 {margin: 0.0px 0.0px 11.0px 0.0px; line-height: 10.5px; font: 10.0px Helvetica} p.p3 {margin: 0.0px 0.0px 8.0px 0.0px; line-height: 10.5px; font: 10.0px Helvetica} span.Apple-tab-span {white-space:pre} The original configuration was with a mechanical Bell Housing clutch with a pump face ou

Hybrid Truck Uses Logan Clutch Technology

Hybrid Truck Uses Logan Clutch Technology

Posted By Andrew Logan
January 16, 2018 Category: General, Mobile

Logan was the partner with LightningHybrids of Loveland CO on a recently brought to market round-town delivery truck. The system is particularly well suited to heavy stop start duty trucks saving up to 40% of the

Logan Bell Housing PTOs For Runway Cleaning / Airport and Roadway Marking Removal Equipment

Logan Bell Housing PTOs For Runway Cleaning / Airport and Roadway Marking Removal Equipment

Posted By Andrew Logan
October 18, 2016 Category: General, Mobile

Logan Bell Housing PTO’s For Runway Cleaning / Airport and Roadway Marking Removal Equipment

Logan Power Take-off (PTO) Clutches For Mobile Equipment

Logan Power Take off (PTO) Clutches  For Mobile Equipment

Posted By Andrew Logan
October 12, 2016 Category: General, Mobile

OEM Manufacturer of Construction Equipment Works Together with Logan Application Team  The Challenge: Before OEM contacts Logan to solve system issues which are causing hydraulic pump failure   Most OEM manufacturers of mobile equipment use hydraulic piston pumps to control machine movements and attachments. In many cases these hydraulic piston pumps are driven remotely from the engine’s auxiliary PTO drive via a slip yoke shaft. Machine Operators must be able to turn these pumps on and off when the vehicle is driven from job site to job site - in order to prevent over speeding the pump when the engine is running faster than the pumps normal hydraulic work speed. There is also the potential for all the pumps to engage at once, which would cause the input torque rating to be above the engine specifications causing hydraulic system and pump failure. In this situation, customers were going beyond the limits of the machine and pump specs – the OEM had to do something quickly -they contacted Logan.  The Solution: After Logan adapts off the shelf SAE PTO Clutch to meet specific OEM customer need In most cases the pumps are already defined by the customer, which requires Logan to fit with small envelopes, sandwiching the Logan Clutch in between the pump and engine. After considering all of the options with Logan application engineers, the OEM selected an SAE PTO 1200 Series Clutch. In less than a week, extensive lab and field tests were conducted. R

Logan Bell Housing PTOs For Power Generation

Logan Bell Housing PTOs For Power Generation

Posted By Logan Clutch
October 12, 2016 Category: General, Mobile

Logan Bell Housing PTO’s For Power Generation. Standard Logan Bell Housing PTO’s are available in No. 00 to No.7 size SAE Bells. This application required a Logan LC-314 (No. 01 Size Bell), Clutch for main propulsion and a Logan SAE Direct Dri

Logan Bell Housing PTOs For Typical Applications

Logan Bell Housing PTOs For Typical Applications

Posted By Logan Clutch
October 12, 2016 Category: General, Mobile

Logan Bell Housing PTO’s For Typical Applications
