Bell Housing PTO Tree & Brush Chipper Applications

Tree and Brush Chippers Recycling

Frequent mechanical PTO clutch overhauls can take a chipper out of service for several hours or an entire day, resulting in lost revenue and increased operating expenses.

Logan PTO Clutch on a Rayco Tree Chipper

Logan self-adjusting PTO’s eliminate the need for mechanical adjustment, ensuring more up-time and less downtime since mechanical linkages, lever arms, yokes and collars are no longer required.


Features:

  • Air or Fluid Actuated
  • High Torque, Small Envelope
  • Available with or without Pilot Bearings
  • Remote Actuation



Above: Logan PTO Clutch mounts directly to engines’ SAE flywheel

LC-311 PTO transmits 1,446 lb. ft. (1960 Nm)  @ 200 psi (13,9 bar), Pictrued with Brush Chipper

Logan Bell Housing PTO 19s Feed / Discharge System has 20 1D (50.8 Cm) Chipping Capacity


Wood Shredders / Recycling

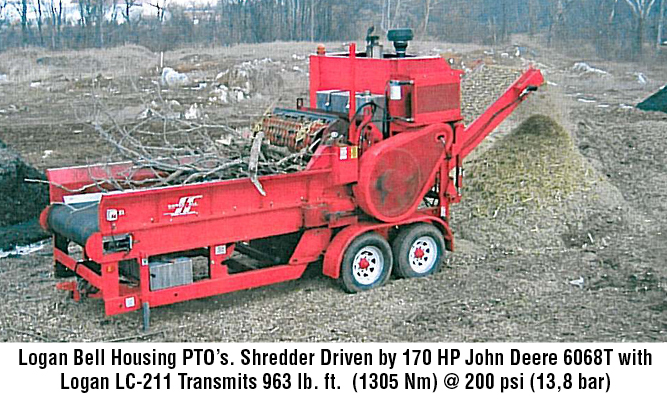

Logan Bell Housing PTO 19s. Shredder Driven by 170 hp John Deere 6068T with  Logan LC-211 Transmits 963 lb. ft.  (1305 Nm) @ 200 psi (13,8 bar)

Since shredder /recyclers are capable of processing pallets, brush, logs, bark, sawmill waste, scrap framing lumber, plywood and drywall – right at the work site; you need a tough clutch to handle the diverse operating conditions. And, since Logan clutches are designed to transmit maximum torque within a very small envelope, shredding and processing is simple and efficient - bringing projects in on time and within competitive operating budgets.
