Clutches and Brakes for Mobile Applications

Logan offers a wide variety of clutch and brake solutions for Mobile applications, including:

Snow Blowers, Municipal Vehicles, Air Rescue Fire Fighting Equipment, Road Grinders, Vaccuum Trucks, Mobile Cranes, Tree and Brush Chippers, Water Blasting, and Agricultural Equipment.

Clutches are designed in a series, are hydraulically or pneumatically actuated and can operate in wet (oil) or dry conditions. Modified standards can be engineered to meet specific customer and application design requirements that are outside of our standard catalog offering (Torque, RPM, Horsepower, or Envelope).

Logan is an OEM manufacturer and products are manufactured and assembled in the U.S.A. Logan Sales, Engineering and Manufacturing and Service Personnel are available to you to answer questions on catalog specs, parts and service details, and inquiries about your specific design requirements. Our Global Parts and Service departments are available to you 24/7 through Logan and our Dealer / Distributor Network.

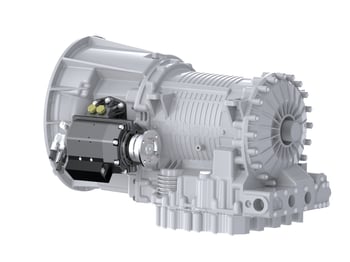

  • Logan SAE PTO with Shaft Adapter Options Available for 300, 600, 1000, 1200 and 1500 Series PTO\'s
  • On Highway Truck Chassis with Auxiliary Pump Clutched with Logan SAE PTO with Logan Shaft Adapter.
  • Logan Direct Drive Power Take-Off (PTO) Clutch
  • Logan SAE 600 Series Direct Drive PTO\'s Mounted to a Live PTO Wing Drive, Sandwiched Between a Cat 3412 Engine and an Allison® 8900 Series Transmission.
  • Diesel Engine Transmission
  • On Highway Truck Chassis with Auxiliary Piston Pump Clutched with a Logan Direct Drive PTO Clutch.
  • LC-311 PTO Transmits 1,446 lb. ft. (1960 Nm) @ 200 psi (13,9 bar), Pictrued with Brush Chipper
  • A Logan LC-211 Acts as a Connect-Disconnect Between a 205 HP Isuzu 4HK1-TC Diesel Engine and Hybrid Electric Propulsion System, Enabling This City Bus to Operate in Zero Emission Mode 25% of the Time.
  • Logan Bell Housing PTO’s Feed / Discharge System has 20” (50.8 Cm) Chipping Capacity
  • Logan Bell Housing PTO’s. Shredder Driven by 170 HP John Deere 6068T with Logan LC-211 Transmits 963 lb. ft. (1305 Nm) @ 200 psi (13,8 bar)
  • With 480 lb. ft. of Torque (650 Nm) @ 200 psi (13,8 bar), the Logan LC-111 Bell Housing PTO Transmits Almost Twice the Typical Torque Required 262 lb. ft. (355 Nm) to Power This Municipal Vehicle
  • View of Logan LC-318 PTO and Hydraulic Manifold on Airport Snow Blower
  • This Airport 700 HP Snow Blower is Equipped with a Logan LC-318 Bell Housing PTO and is Capable of Clearing a 120" Wide Path of Snow, Moving 6000 Tons of Snow per Hour
  • Logan LC-311 Bell Housing PTO 1446 lb. ft. (1960 Nm) Pictured on a Wheel- Loader Mounted Snow Blower.
